Артикул
Название
Примечание
Количество
90-7016T91
GEARBOX ASSY
TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 30 and pump assembly
1шт.
313686A1R
REMAN-TRANSMISSION
Remanufactured Transmission 4WD Powershift;
1шт.
313686A1C
CORE-TRANSMISSION
Return Part Number
1шт.

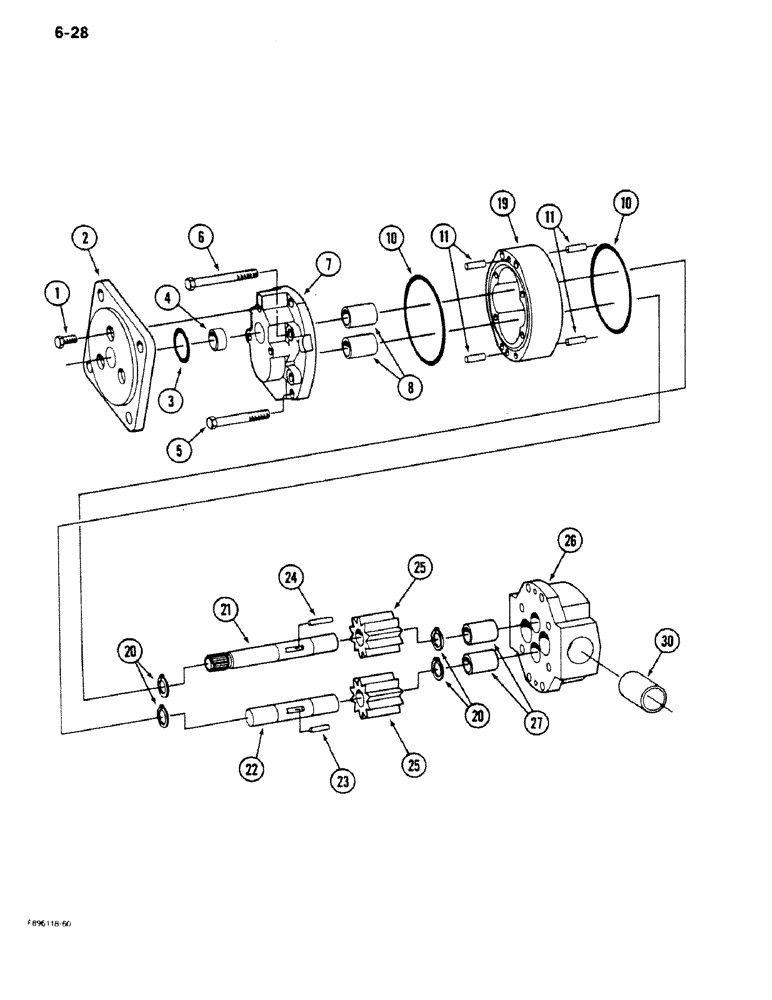

33-1524T91
PUMP, HYDRAULIC
PUMP ASSEMBLY - lubrication, Includes: Ref. 1 - 30
1шт.
33-1524T91R
REMAN-HYD PUMP
9170, 9180 Both (S/N JCB0003600 & After) (7/89-7/90)
1шт.
33-1524T91C
CORE-HYDRAULIC PUMP
Return Part Number
1шт.
1
33-1540T1
SCREW
BOLT - hex
3шт.
2
33-1541T1
ADAPTER
ADAPTER - pump mounting
1шт.
3
33-1542T1
O-RING
O-RING - seal
1шт.
4
33-1543T1
RING
RING - locating
1шт.
5
33-1544T1
SCREW
BOLT - hex
4шт.
6
33-1545T1
SCREW
BOLT - hex
4шт.
7
33-1546T1
HOUSING
HOUSING - front, Includes: Ref. 8
1шт.
8
NSS
NOT SOLD SEPARAT
BUSHING - front housing
2шт.
10
33-1547T1
O-RING
O-RING - seal, pump housing
2шт.
11
33-1548T1
DOWEL
PIN - dowel
4шт.
19
33-1549T1
HOUSING
HOUSING - center
1шт.
20
33-1550T1
RING, SNAP
RING SNAP RING - snap
4шт.
21
33-1551T1
DRIVE SHAFT
SHAFT - drive
1шт.
22
33-1552T1
SHAFT
SHAFT - idler
1шт.
23
33-1553T1
KEY
KEY - dowel, idler shaft
1шт.
24
33-1554T1
HITCH ASSY
KEY - dowel, drive shaft
1шт.
25
33-1555T1
PINION
GEAR - pump.
2шт.
26
33-1556T1
HOUSING
HOUSING - rear, Includes: Ref. 27
1шт.
27
NSS
NOT SOLD SEPARAT
BUSHING - rear housing
2шт.
30
33-1557T1
TUBE
TUBE - inlet
1шт.
Выбрано товаров: 26
