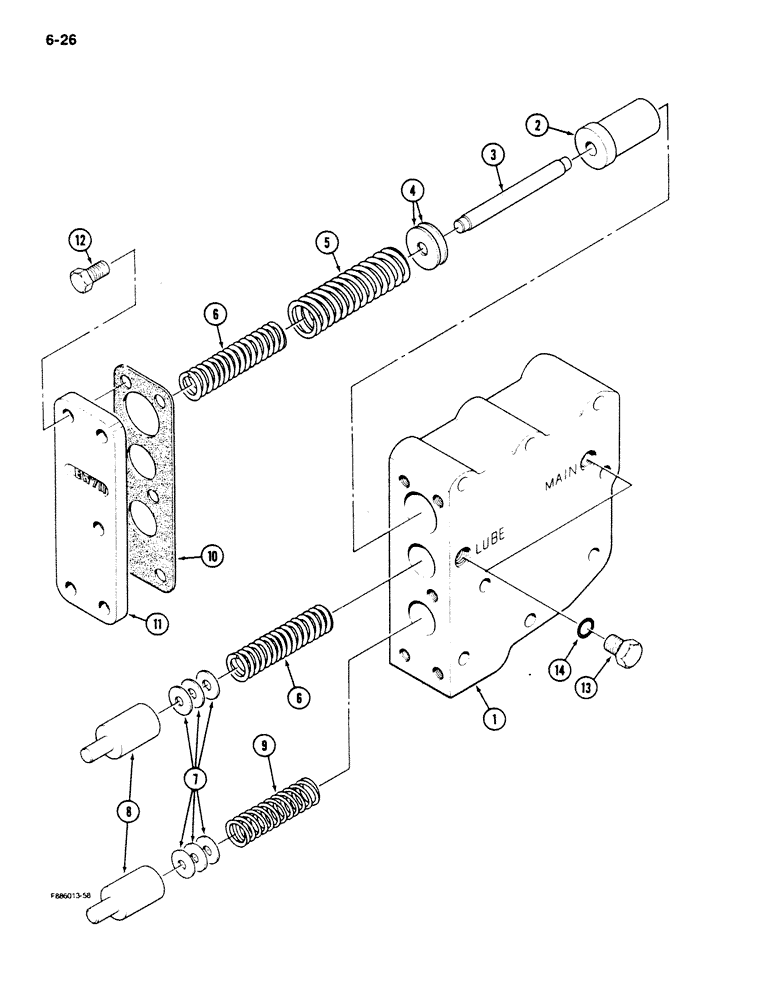

Запчасти Case IH 9180 (6-26) - TRANSMISSION, REGULATOR VALVE (06) - POWER TRAIN

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 14 and valve assembly

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S7000S00F

VALVE

VALVE ASSEMBLY - regulator, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator valve

1шт.

2

S7030S00F

VALVE

VALVE - regulator

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

SHIM, .039" Thk

1шт.

5

S7120S00F

SPRING

SPRING - compression

1шт.

6

S7050S00F

SPRING

SPRING - compression

2шт.

7

S7080S00F

SHIM,.031" Thk

SHIM, .031" Thk

1шт.

8

S7060S00F

VALVE

VALVE - lube

2шт.

9

S7070S00F

SPRING

SPRING - compression

1шт.

10

S7090S00F

GASKET

GASKET - valve cover

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

11

S7110S00F

COVER

COVER - valve body

1шт.

12

SM8120820

BOLT

BOLT - hex, 8 mm - 1.25 x 20 mm

5шт.

13

S1030S00F

PLUG

PLUG - oil ports, Includes: Ref. 14

2шт.

14

S1040S00F

O-RING

O-RING - plug

2шт.
