Запчасти Case IH 9180 (6-14) - TRANSMISSION, COMPOUND SHAFT (06) - POWER TRAIN

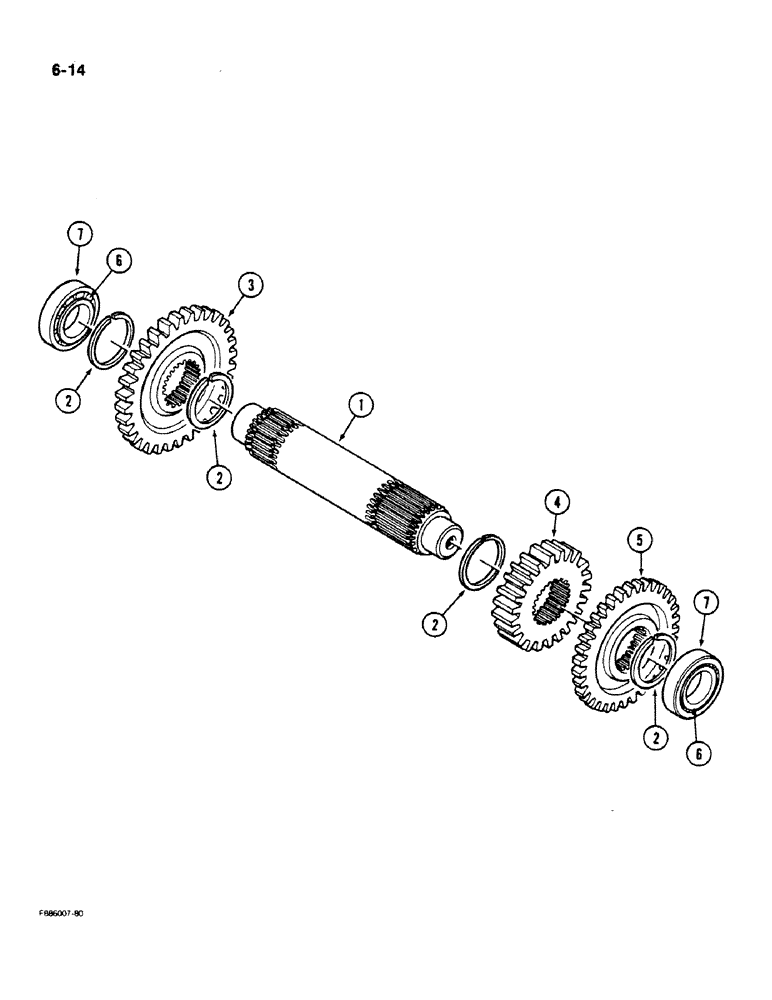

Схема запчастей Case IH 9180 - (6-14) - TRANSMISSION, COMPOUND SHAFT (06) - POWER TRAIN
2
6
7
2
2
3
6
4
1
7
5
2

Артикул

Название

Примечание

Количество

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 7

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

1

33-1436T1

SHAFT

SHAFT - compound

1шт.

2

33-1416T1

RING, SNAP

RING SNAP RING - retaining

4шт.

3

33-1415T1

PINION

GEAR - compound shaft (32 Tooth)

1шт.

4

33-1434T1

PINION

GEAR - drive (22 Tooth)

1шт.

5

33-1435T1

PINION

GEAR - driven (29 Tooth)

1шт.

6

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE ASSEMBLY - bearing

2шт.

7

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

Выбрано товаров: 10
