Запчасти Case IH 9180 (6-10) - TRANSMISSION, (CONT) (06) - POWER TRAIN

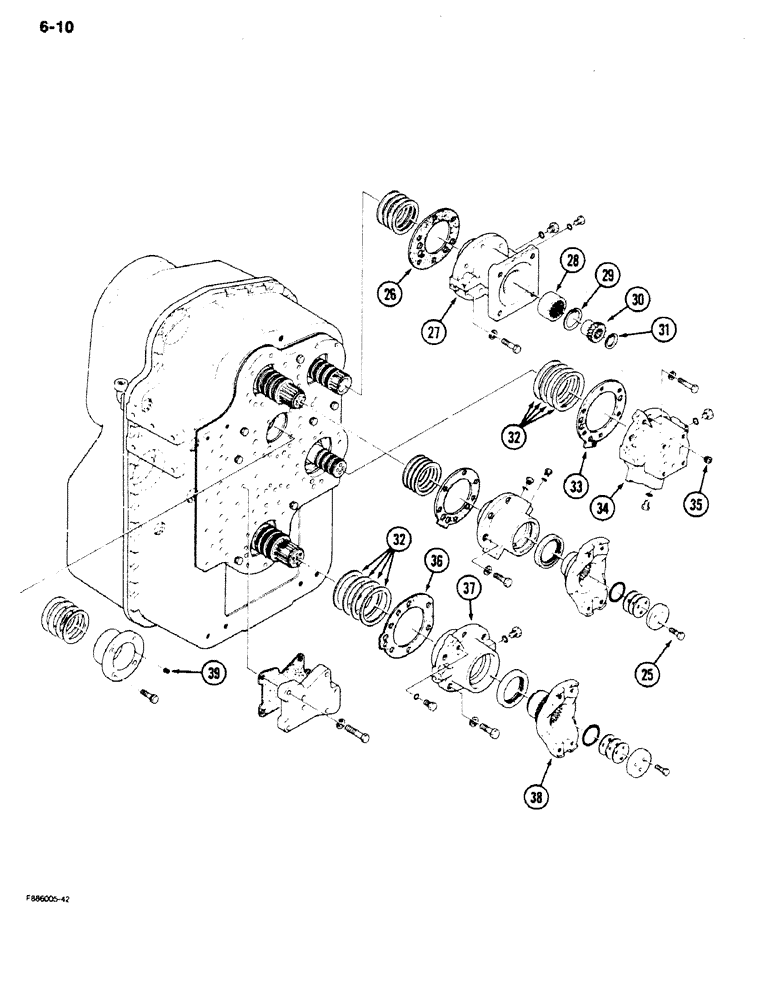

Схема запчастей Case IH 9180 - (6-10) - TRANSMISSION, (CONT) (06) - POWER TRAIN
32
33
39
25
30
37
32
35
26
34
29
36
27
38
28
31

Артикул

Название

Примечание

Количество

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 25 - 39 and 1 - 24 on Fig. 6-8

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

25

SM8134035

BOLT

BOLT - hex, 10 mm - 1.25 x 35 mm, Grade 10.9

3шт.

26

33-1468T1

GASKET

GASKET - pump support

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

27

33-1514T1

HOLDER

SUPPORT - oil pump

1шт.

28

33-1444T1

COUPLING

COUPLING - pump adapter

1шт.

29

33-1445T1

RING, SNAP

RING SNAP RING - snap

1шт.

30

33-1515T1

ADAPTER

ADAPTER - pump drive

1шт.

31

33-1517T1

RING, SNAP

RING SNAP RING - snap

1шт.

32

33-1460T1

SHIM

SHIM - bearing, 0.10 mm thick

1шт.

32

33-1461T1

SHIM

SHIM - bearing, 0.30 mm thick

1шт.

32

33-1462T1

SHIM

SHIM - bearing, 0.50 mm thick

1шт.

32

33-1463T1

SHIM

SHIM - bearing, 0.70 mm thick

1шт.

32

33-1475T1

SHIM

SHIM - bearing, 0.15 mm thick

1шт.

33

33-1433T1

GASKET

GASKET - clutch collector

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

34

33-1438T1

CLUTCH

COLLECTOR - clutch

1шт.

35

STX99700F

PLUG

PLUG

1шт.

36

33-1426T1

GASKET

GASKET - bearing retainer

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

37

33-1427T1

BEARING CARRIER

RETAINER - bearing

1шт.

38

33-1429T1

YOKE

UNIVERSAL JOINT YOKE YOKE - output, front

1шт.

39

33-1439T1

PLUG

PLUG - orifice

2шт.

Выбрано товаров: 25
