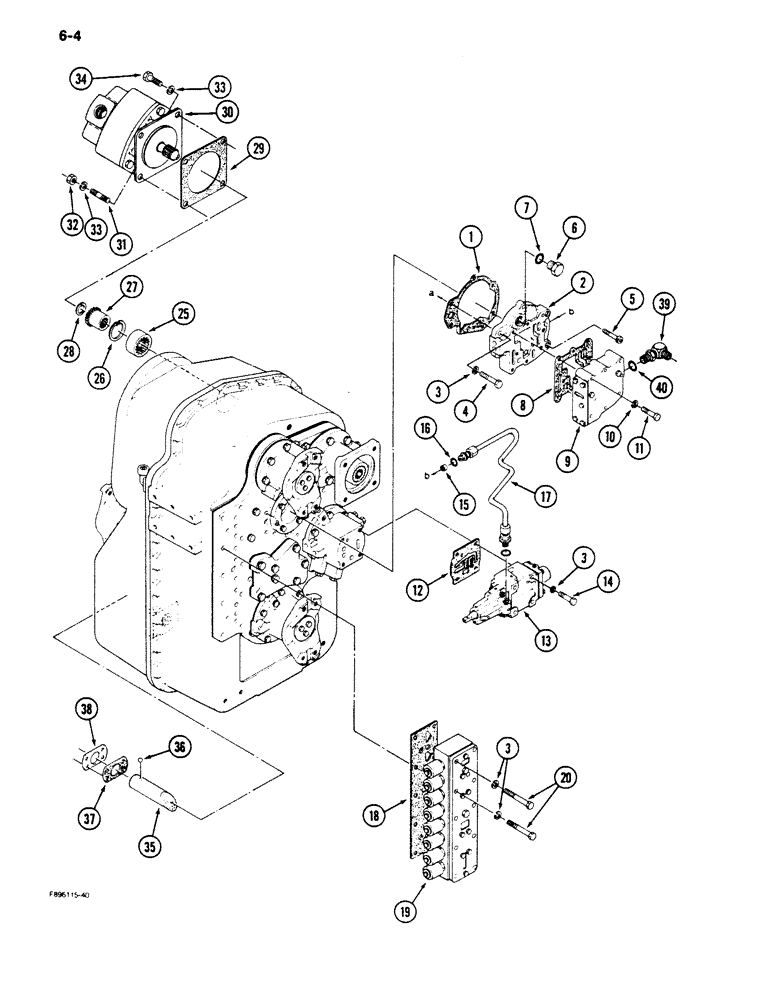

Запчасти Case IH 9180 (6-04) - TRANSMISSION (06) - POWER TRAIN

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY, Includes: Ref. 1 - 40

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

1

S1160S00F

GASKET

GASKET - ditch plate

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

2

S1170S00F

LARGE PLATE

PLATE, LARGE PLATE - ditch

1шт.

3

SM8915140

PLATE, LOCKING

WASHER - lock, 10 mm

17шт.

4

SM8124070

BOLT

BOLT - hex, 10 mm - 1.25 x 70 mm

3шт.

5

S1050S00F

SCREW

BOLT - socket head

3шт.

6

S1210S00F

PLUG

PLUG - o-ring boss, Includes: Ref. 7

1шт.

7

S1200S00F

O-RING

O-RING - plug

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

8

S1150S00F

GASKET

GASKET - regulator valve

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - regulator (See Figure 6-26)

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

11

SM8120865

BOLT

BOLT - hex, 8 mm - 1.25 x 65 mm

8шт.

12

S1140S00F

GASKET

GASKET - clutch control

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

13

REF

INSTRUCTION

CONTROL ASSEMBLY - clutch (See Figure 6-24)

1шт.

14

SM8124085

BOLT

BOLT - hex, 10 mm - 1.25 x 85 mm

4шт.

15

S1020S00F

FILTER

SCREEN - filter

1шт.

16

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

2шт.

17

S1650S01F

TUBE ASSY.

TUBE - clutch

1шт.

18

S1220S00F

GASKET

GASKET - range selector valve

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - range selector (See Figure 6-30)

1шт.

20

SM8124003

BOLT

BOLT - hex, 10 mm - 1.25 x 115 mm

10шт.

25

33-1452T1

COUPLING

COUPLING - pump

1шт.

26

33-1445T1

RING, SNAP

RING SNAP RING - snap

1шт.

27

33-1516T1

ADAPTER

ADAPTER - pump drive

1шт.

28

33-1446T1

RING, SNAP

RING SNAP RING - snap

1шт.

29

50-1388T1

GASKET

GASKET - pump

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

30

REF

INSTRUCTION

PUMP ASSEMBLY - lube (See Figure 6-28)

1шт.

31

SM8267430

STUD

STUD - 14 mm - 1.5 x 30 mm

2шт.

32

SM8911244

NUT

NUT - hex, 14 mm - 1.5

2шт.

33

SM8915144

PLATE, LOCKING

WASHER - lock, 14 mm

2шт.

34

SM8124440

BOLT

BOLT - hex, 14 mm - 1.5 x 40 mm

2шт.

35

S1520S00F

PIPE

TUBE - suction

1шт.

36

S14701960

BALL,3.968mm OD

BALL - steel, tube retaining

1шт.

37

S1620S00F

GASKET

GASKET - suction tube

1шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

38

S1700S00F

LARGE PLATE

PLATE, LARGE PLATE - suction tube retainer

1шт.

39

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ELBOW, 90º, adjustable, 1-5/16-12 inch thread, Incl. Ref. 40

1шт.

40

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

O-RING - 1-11/64 ID x 1/8 inch width

1шт.
