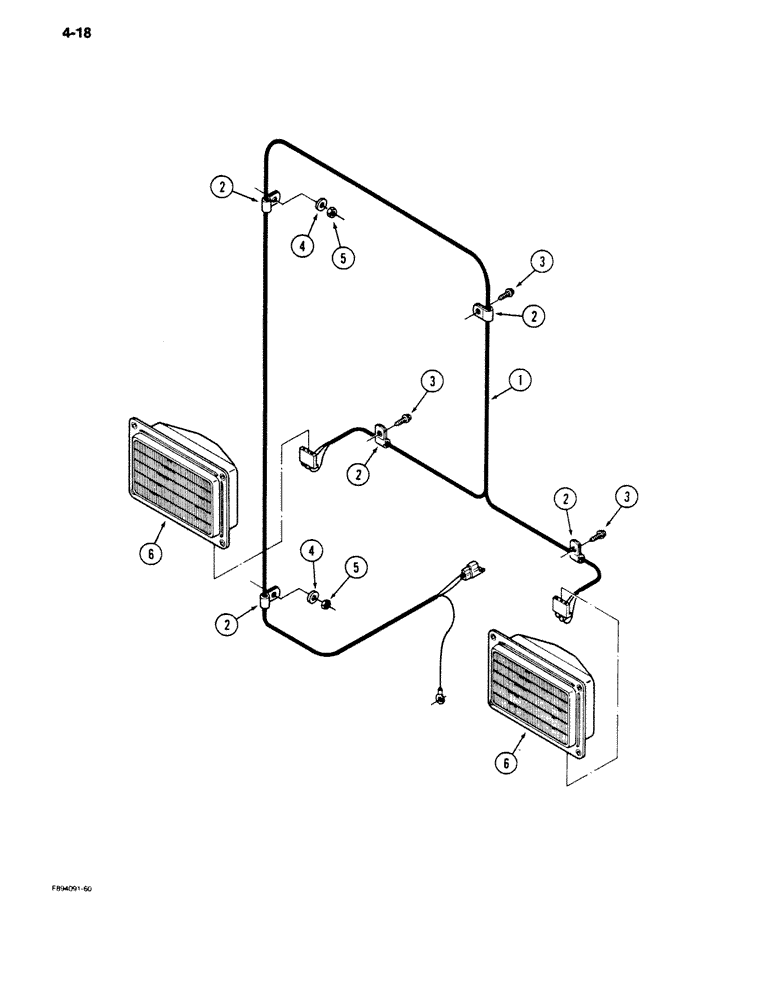

Запчасти Case IH 9180 (4-18) - FRONT HEADLIGHT HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2022T1

HARNESS

ASSEMBLY - headlamp

1шт.

2

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

5шт.

3

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged, 1/4 NC x 3/4 inch

3шт.

4

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

REF

INSTRUCTION

LAMP ASSEMBLY - head (See Figure 4-36)

2шт.
