Запчасти Case IH 9180 (9-90) - 60-6108T1 DECALS (09) - CHASSIS/ATTACHMENTS

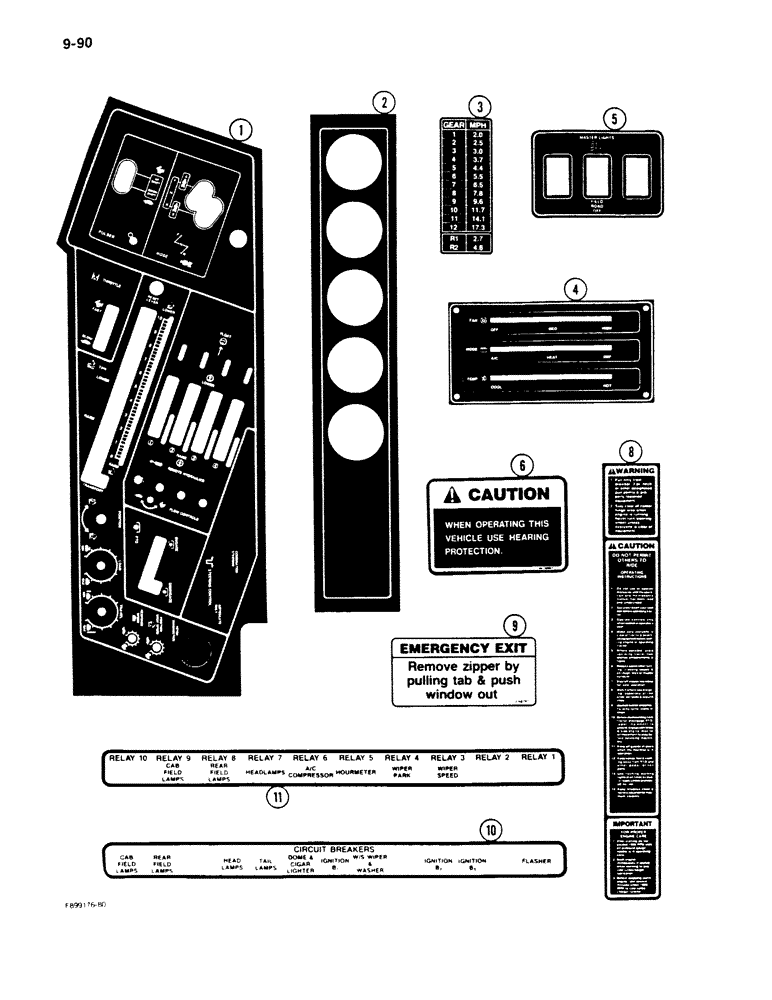

Схема запчастей Case IH 9180 - (9-90) - 60-6108T1 DECALS (09) - CHASSIS/ATTACHMENTS
5
1
9
6
4
3
11
2
10
8

Артикул

Название

Примечание

Количество

1

60-6108T1

DECAL

- control console

1шт.

2

60-5939T2

DECAL

- gauge panel

1шт.

3

60-5941T1

DECAL

- mile per hour

1шт.

4

60-5932T1

DECAL

- air conditioning/heating controls

1шт.

5

60-5980T1

DECAL

- master lights, ROPS

1шт.

6

60-5866T1

DECAL

- hearing protection

1шт.

8

2-7393T1

DECAL

- safety

1шт.

9

2-6879T1

DECAL

- emergency exit, cab

1шт.

10

60-6297T1

DECAL

- circuit breaker

1шт.

11

60-6298T1

DECAL

- relay

1шт.

Выбрано товаров: 10
