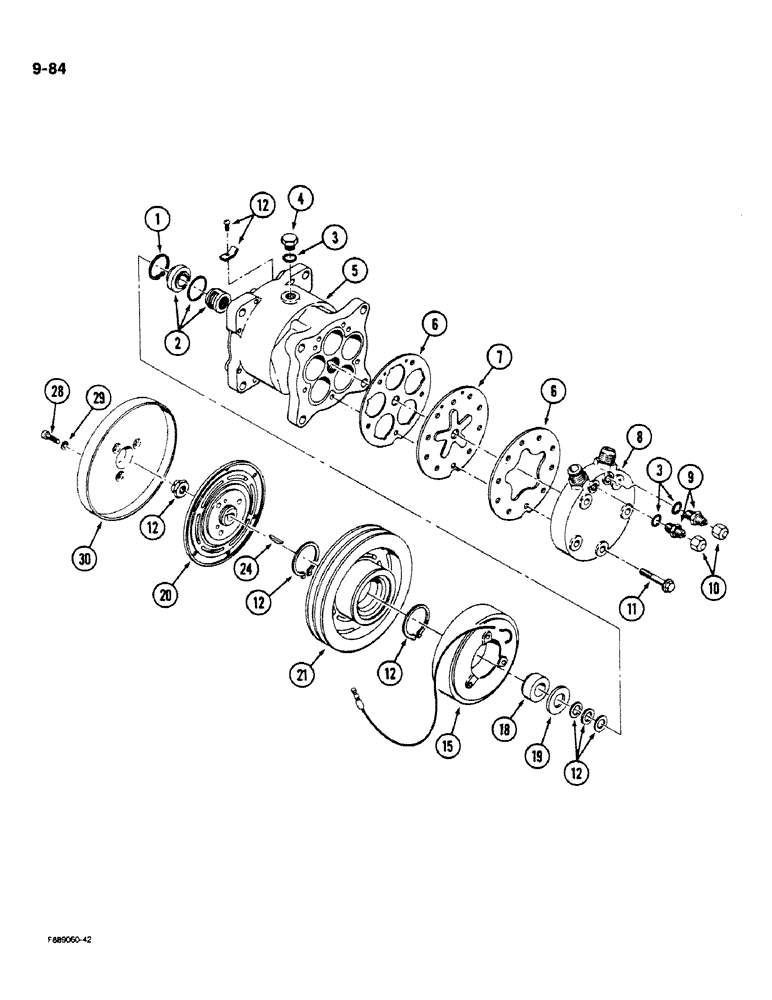

Запчасти Case IH 9180 (9-84) - AIR CONDITIONING, COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

60-2921T93

COMPRESSOR

ASSEMBLY - air conditioning, complete, Includes: Ref. 1 - 30

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

9170, 9180 , BOTH CASE IH STEIGER 4WD TRACTOR (S/N JCB0003600 & AFTER) (7/89-7/90), Reman for New P/N 60-2921T93

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

ASSEMBLY - compressor, Includes: Ref. 1 - 30

1шт.

1

1-2435

RING, SNAP

RING - snap

1шт.

2

60-3091T1

SEAL KIT

SEAL KIT - compressor

1шт.

3

1-2437

O-RING

- plug, oil fill and service ports

3шт.

4

A49667

PLUG

- oil fill

1шт.

5

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - compressor

1шт.

6

60-3092T91

PLATE

ASSEMBLY - valve

1шт.

7

25-231

GASKET KIT

KIT - valve body

1шт.

8

60-3093T1

HEAD (CYLINDER)

HEAD - cylinder (Includes Ref. 7)

1шт.

9

1-2440

FITTING

VALVE ASSEMBLY - service port

2шт.

10

1-2441

CAP

- service port

2шт.

11

1-2438

SCREW,Hex Flg Hd

BOLT - hex, flanged head

5шт.

12

60-3095T1

SET OF WASHERS

ACCESSORY KIT - clutch

1шт.

15

25-237T1

COIL ASSY.

COIL - pulley actuating, 12 volt

1шт.

1-3759

CLUTCH HOUSING

CLUTCH ASSEMBLY - compressor, Includes: Ref. 18 - 21

1шт.

18

35-1064

BEARING ASSY

KIT - clutch

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - dust, bearing

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY - clutch

1шт.

24

60-4839T1

BUCKET TOOTH KEY

KEY - shaft, compressor

1шт.

28

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - socket head, 1/4 NC x 1/2 inch, Grade 8

3шт.

29

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , Includes: Ref. 30 Int Tooth, 1/4"

3шт.

30

1981776C1

COVER

- dust

1шт.
