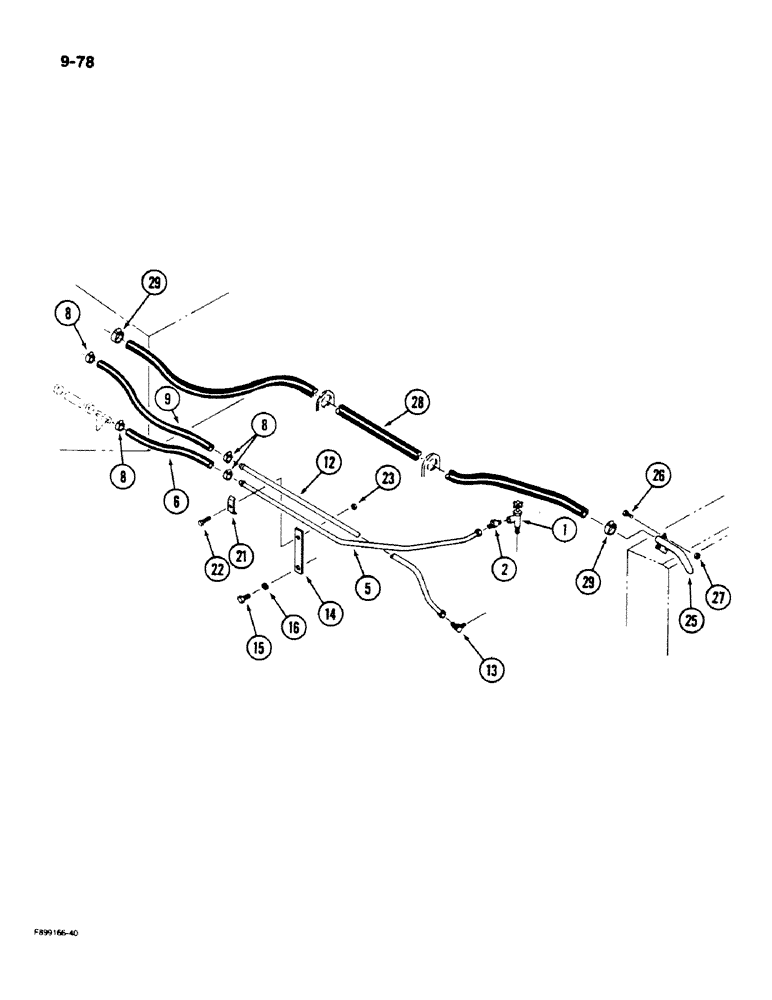

Запчасти Case IH 9180 (9-78) - HEATER PLUMBING, CAB (09) - CHASSIS/ATTACHMENTS

1

31-1275

SHUT-OFF VALVE

VALVE - shut off, 1/2 PT x 3/8 NPT female

1шт.

2

31-1304

ELBOW,45 Degree, 7/8"-14" NPTF x 3/8"-18, 37 Degree

CONNECTOR - 45 degree, 3/8 PT x 7/8 inch thread

1шт.

5

60-5801T1

TUBE,0.625" OD, 35.12, 8.6" Length

- heater

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 31 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

8

25-285T1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, 1/2 to 7/8 inch

4шт.

9

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 42 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

12

25-389T1

HEATER TUBE,0.625" OD, 46.75" Length

TUBE - heater

1шт.

13

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

1шт.

14

25-395

STRAP

BRACKET - clamp mounting

1шт.

15

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/2 inch

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

21

32-1000

CLAMP

- tube, heater

1шт.

22

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch

1шт.

23

111626C1

NUT

- hex lock, 1/4 inch NC

1шт.

25

90-6830T1

TUBE,3.69 mm L

- evacuation, precleaner

1шт.

26

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

27

19-508

LOCK NUT

- hex lock, 5/16 inch NC

3шт.

28

31-2290

HOSE,1.00" ID x 84.00"

Evacuation, Order 31-1502T1, and Cut to Required Length 1.00" ID x 84.00"

1шт.

29

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 to 2 inch

2шт.
