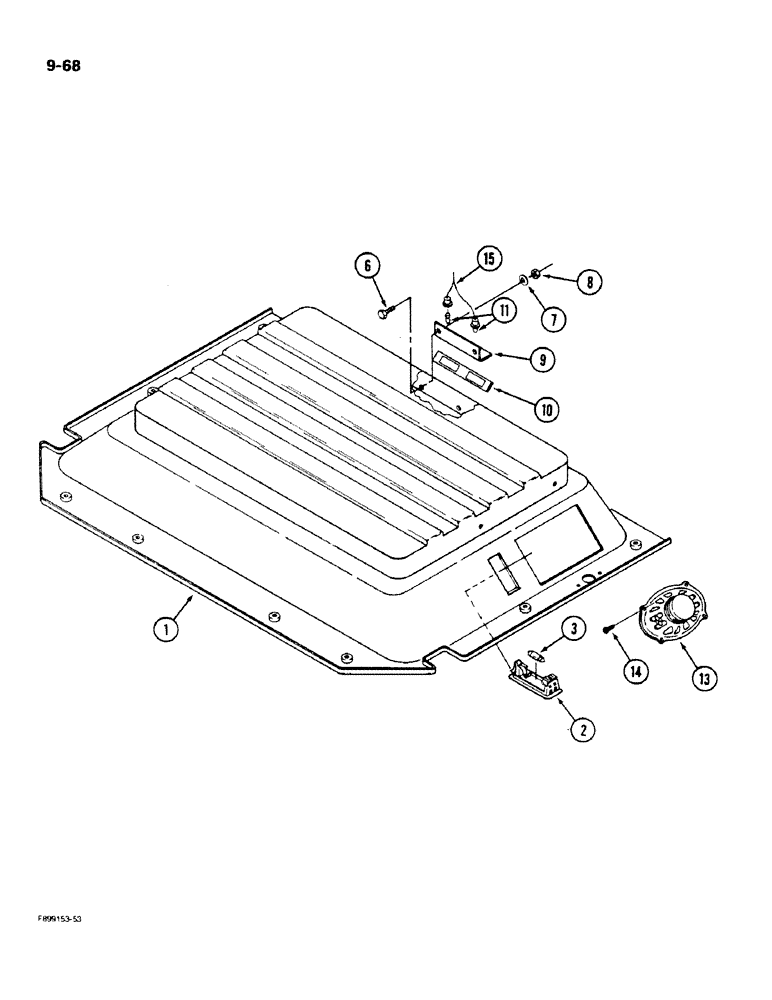

Запчасти Case IH 9180 (9-68) - HEADLINER, CAB (09) - CHASSIS/ATTACHMENTS

1

60-6254T2

ROOF

HEADLINER - cab

1шт.

2

K303720

INTERIOR LIGHT

LAMP ASSEMBLY - dome

1шт.

3

3050958R1

BULB,K, 12V, 10W

- light, No.1141 K, 12V, 10W

1шт.

6

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

- machine, No. 10 x 3/4 inch

2шт.

7

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 inch

2шт.

8

19-567

NUT,#10-24

- hex lock, No. 10 NC

2шт.

9

60-6299T1

ANGLE BAR

PLATE - light mounting

1шт.

10

60-4029T1

LARGE PLATE

DIFFUSER PLATE - light

1шт.

11

20-1384T1

BULB

- lamp, No. 53

2шт.

13

60-5748T1

SPEAKER

- radio

2шт.

14

27093R1

SCREW

- machine, pan, No. 10 x 5/8

8шт.

15

REF

INSTRUCTION

HARNESS - overhead (See Figure 4-6)

1шт.
