Запчасти Case IH 9180 (9-60) - CONTROL CONSOLE, CAB (09) - CHASSIS/ATTACHMENTS

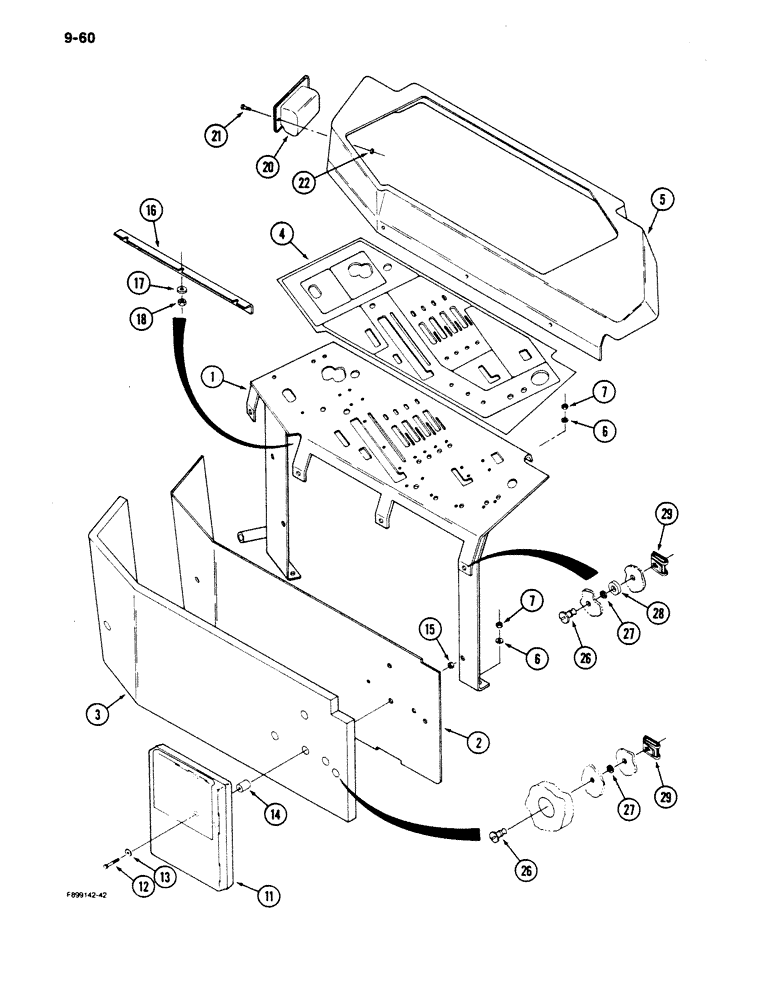

Схема запчастей Case IH 9180 - (9-60) - CONTROL CONSOLE, CAB (09) - CHASSIS/ATTACHMENTS
15
6
4
21
12
27
2
14
16
22
26
27
26
3
11
7
6
13
1
5
20
28
7
17
18
29
29

Артикул

Название

Примечание

Количество

1

60-6084T1

PANEL

- control console

1шт.

2

60-6106T1

SHIELD

PANEL - console wraparound

1шт.

3

60-6063T1

COVER

- console panel

1шт.

4

60-6108T1

DECAL

- control console

1шт.

5

60-5938T1

COVER

- console

1шт.

6

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

6шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

5шт.

11

97079C2

BOX

- operators manual

1шт.

12

19-718

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

13

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

3шт.

14

60-6062T1

SPACER

- manual box

3шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

16

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

17

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

3шт.

18

19-5563

LOCK NUT

- hex lock, No. 10 NC

3шт.

20

2-6138T91

ASH TRAY

ASHTRAY

1шт.

21

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

- machine, flat head, No. 8 NC x 5/8 inch

2шт.

22

19-5621

LOCK NUT,#8-32, GB

NUT - hex lock, No. 8 NC

2шт.

26

19-6136

STUD

- quarter turn

11шт.

27

A36041

RETAINER

- stud

11шт.

28

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

29

A36042

CLIP

RECEPTACLE - quarter turn stud

11шт.

Выбрано товаров: 22
