Артикул
Название
Примечание
Количество

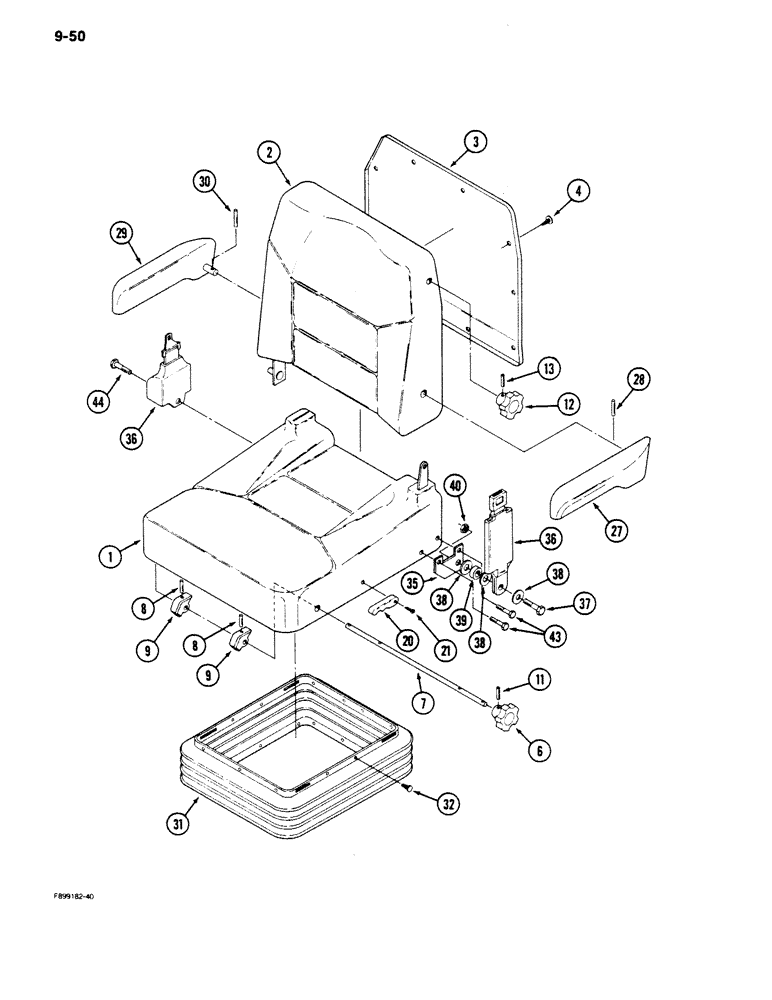

1340224C1
SEAT ASSY.
SEAT ASSEMBLY - mechanical, with vinyl upholstery, Includes: Ref. 1 - 44
1шт.
1981830C1
PACKAGE, REPAIR
SEAT KIT - top, service, Includes: Ref. 1 - 21
1шт.
1
NSS
NOT SOLD SEPARAT
CUSHION ASSEMBLY - seat (Order 1981832C1), Includes cushion kit, pad and ring
1шт.
1981832C1
CUSHION, SEAT
CUSHION KIT - seat service
1шт.
NSS
NOT SOLD SEPARAT
PAD - seat
1шт.
NSS
NOT SOLD SEPARAT
RING - hog
22шт.
2
NSS
NOT SOLD SEPARAT
CUSHION ASSEMBLY - backrest (Order 1981820C1), Includes cushion kit, pad and ring
1шт.
1981831C1
BACKREST
CUSHION KIT - backrest service
1шт.
NSS
NOT SOLD SEPARAT
PAD - backrest
1шт.
Subs to a 1981831C3 which is pad only. 242320A1 IS BACKREST/FRAME KIT
1шт.
NSS
NOT SOLD SEPARAT
RING - hog
22шт.
3
1981820C1
PACKAGE, REPAIR
COVER KIT - back, Includes: Ref. 4
1шт.
4
1974722C1
CLIP,ELECTRICAL
CLIP - retaining
10шт.
6
1981826C1
KNOB
- seat tilt
1шт.
1343826C1
SHAFT
ASSEMBLY - seat tilt, Includes: Ref. 7 - 9
1шт.
7
NSS
NOT SOLD SEPARAT
SHAFT - seat tilt
1шт.
8
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
2шт.
9
1343828C1
CAM
- seat tilt
2шт.
11
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
12
1981828C1
BUTTON
KNOB - lumbar control
1шт.
13
138-303
LOCK PIN,3/16" x 1 1/8", Slotted
Pin, 3/16" x 1 1/8", Slotted
1шт.
20
1974711C1
LEVER
KNOB - backrest tilt
1шт.
21
30299R1
SCREW,Cross Oval Hd, M6 x 12
- machine, oval head cross recess, 6 x 12 mm
1шт.
27
1981818C1
ARMREST
KIT - seat, left, Includes: Ref. 28
1шт.
28
NSS
NOT SOLD SEPARAT
PIN - drive
1шт.
29
1974703C2
ARMREST ASSY.
ARMREST KIT - seat, right, Includes: Ref. 30
1шт.
30
NSS
NOT SOLD SEPARAT
PIN - drive
1шт.
31
1981786C1
KIT
BOOT KIT - suspension, Includes: Ref. 32
1шт.
32
1343837C1
SET OF PARTS
PIN - (Bag of 24)
24шт.
35
1975957C1
BRACKET
- seat belt
1шт.
36
1343982C1
SAFETY BELT
SAFETY BELT
1шт.
37
326-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8
1шт.
38
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
- flat, 17/32 x 1-1/16 x 3/32 inch
3шт.
39
S5375
SPACER,3/8" Pipe x 3/8"
- pipe 3/8 x 3/8 inch
1шт.
40
9413981
LOCK NUT
- hex, 7/16 inch NC
1шт.
43
113-70
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2шт.
44
328-724
BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8
1шт.
Выбрано товаров: 37
