Запчасти Case IH 9180 (9-48) - CLOTH SEAT, AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS

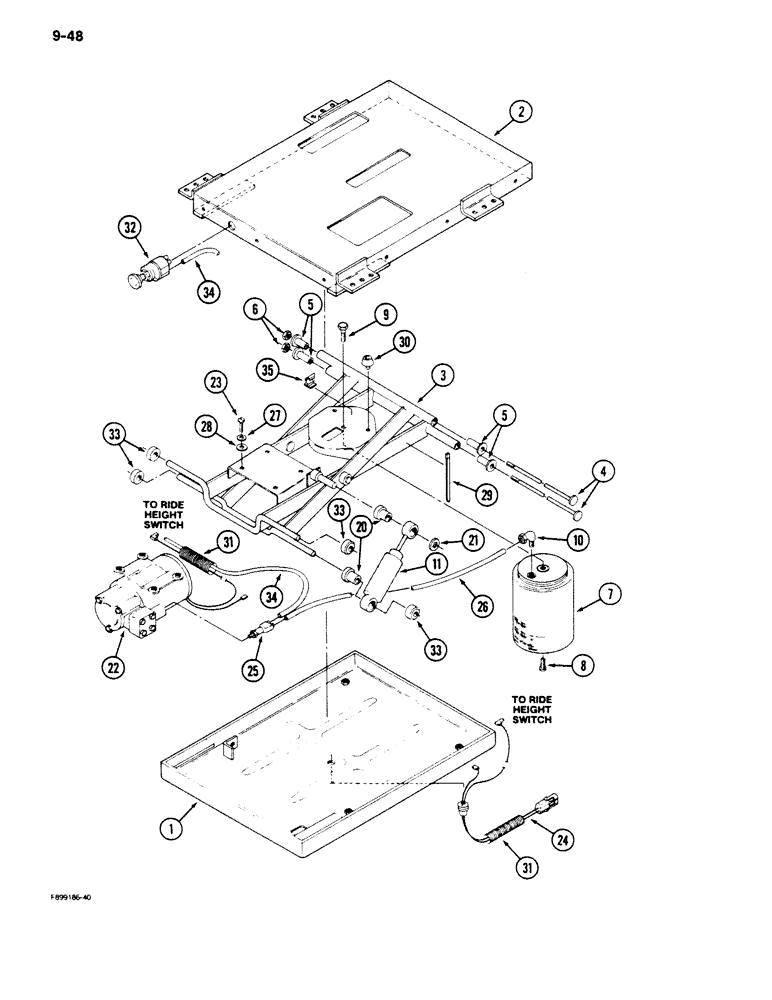

Схема запчастей Case IH 9180 - (9-48) - CLOTH SEAT, AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS
27
34
5
8
33
20
29
2
33
10
35
26
24
34
5
6
3
22
28
32
4
23
33
7
25
11
9
31
1
31
30
21

Артикул

Название

Примечание

Количество

1340225C1

SEAT

ASSEMBLY - air ride suspension (Continued), Includes: Ref. 1 - 35

1шт.

1344002C1

SET OF PARTS

SUSPENSION KIT - service, Includes: Ref. 1 - 35

1шт.

1

1981834C1

HOUSING

- lower, suspension

1шт.

2

1343996C1

HOUSING

- upper

1шт.

3

1343997C1

ARM

ASSEMBLY - suspension

1шт.

4

A49529

SHAFT

- bearing (Replaces A48529)

2шт.

5

A47760

BUSHING

TUBE - bearing

4шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

7

1981842C1

SPRING

- air

1шт.

8

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat head cross recess, 3/8 NC x 3/4"

1шт.

9

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

10

1981865C1

UNION

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube

1шт.

11

1343998C1

KIT

SHOCK ABSORBER - seat

1шт.

20

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

22

1981843C1

COMPRESSOR

- air

1шт.

23

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan, No. 8-32 x 3/8"

4шт.

24

1981848C1

HARNESS

- wire

1шт.

25

1981864C1

UNION

ADAPTER - straight, 1/8 PT x 5/32 inch tube

1шт.

26

1981853C1

PLASTIC-RUBBER TUBE,0.156" OD, 6" Length

AIR HOSE 152.00 mm - Nylon, 5/32 OD

1шт.

27

495-31022

WASHER,#10

4шт.

28

1974732C1

WASHER

- flat

4шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

30

1981849C1

SHOCK ABSORBER

BUMPER - rubber

2шт.

31

1343833C1

TUBE

GUARD - harness protective

2шт.

32

1981852C2

IGNITION SWITCH

SWITCH - ride height

1шт.

33

1981788C1

SHIFTER ROLLER

ROLLER - suspension

4шт.

34

1343946C1

TUBE

- nylon, 5/32 OD x 33 inch

1шт.

35

NSS

NOT SOLD SEPARAT

CLIP - harness and tube

1шт.

Выбрано товаров: 29
