Запчасти Case IH 9180 (9-46) - CLOTH SEAT, AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS

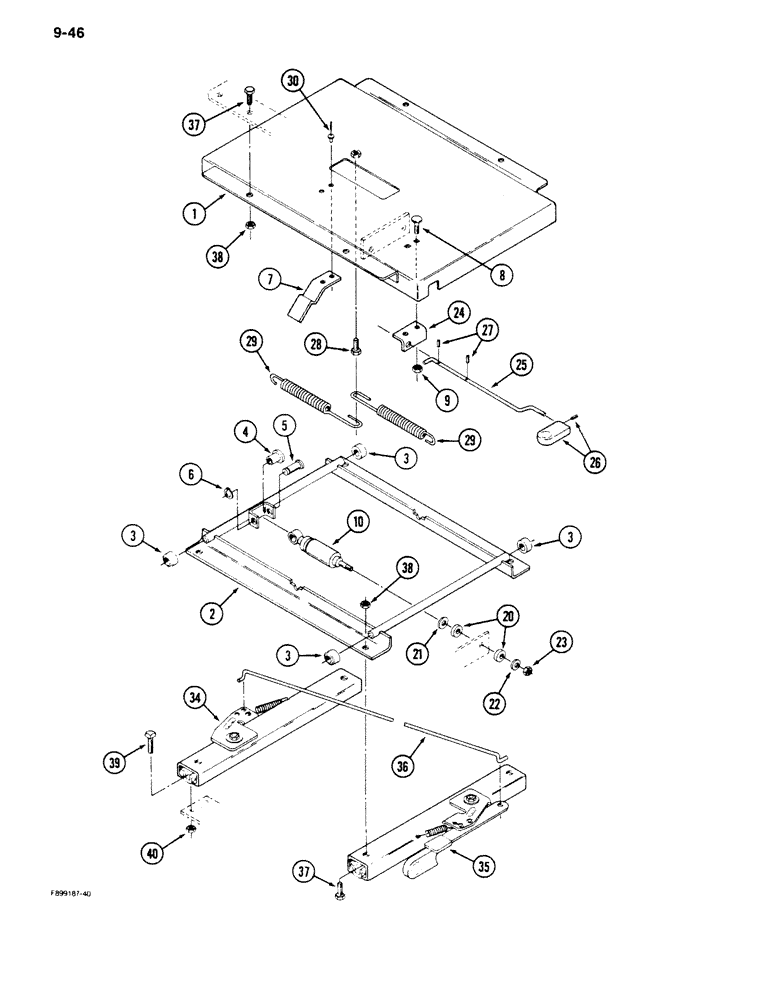

Схема запчастей Case IH 9180 - (9-46) - CLOTH SEAT, AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS
30
34
38
5
2
29
35
40
3
10
6
38
39
3
9
8
28
36
20
7
27
24
29
21
37
1
3
26
22
3
25
23
37
4

Артикул

Название

Примечание

Количество

1340225C1

SEAT

ASSEMBLY - air ride suspension (Continued), Includes: Ref. 1 - 40

1шт.

1344001C1

SET OF PARTS

ISOLATOR - suspension, with lateral adjustment, Includes: Ref. 1 - 30

1шт.

1

1344023C1

SIDE PLATE

PLATE - lateral isolator track

1шт.

2

1344024C1

SUPPORT

- lateral isolator track

1шт.

3

1981788C1

SHIFTER ROLLER

ROLLER - suspension

4шт.

4

1981847C1

BUSHING

- shock absorber

1шт.

5

1344025C1

PIVOT PIN

PIN - shock absorber

1шт.

6

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

7

1344026C1

SPRING

- latch

1шт.

8

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

2шт.

9

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

10

1344028C1

SET OF PARTS

SHOCK ABSORBER - suspension

1шт.

20

A49679

BUSHING

- shock absorber

2шт.

21

A49678

WASHER

- flat, 1 inch

1шт.

22

1974732C1

WASHER

- flat

1шт.

23

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

24

1344027C1

ANGLE BAR

MOUNT - latch, lateral isolator

1шт.

25

1344029C1

ROD

- latch

1шт.

26

1344031C1

GRIP

KNOB - lateral isolator

1шт.

27

138-2057

PIN,5/32" x 5/8", Coiled

2шт.

28

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

29

1344030C1

SPRING

- isolator

2шт.

30

NSS

NOT SOLD SEPARAT

RIVET - latch spring

2шт.

34

1981823C1

SLIDE

ASSEMBLY - seat, right

1шт.

35

1981822C1

SLIDE

ASSEMBLY - seat, left, with handle

1шт.

36

1981825C1

ELECTRICAL WIRE

WIRE - slide actuator

1шт.

37

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

8шт.

38

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

8шт.

39

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

4шт.

40

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

4шт.

Выбрано товаров: 30
