Запчасти Case IH 9180 (9-42) - CLOTH SEAT, AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS

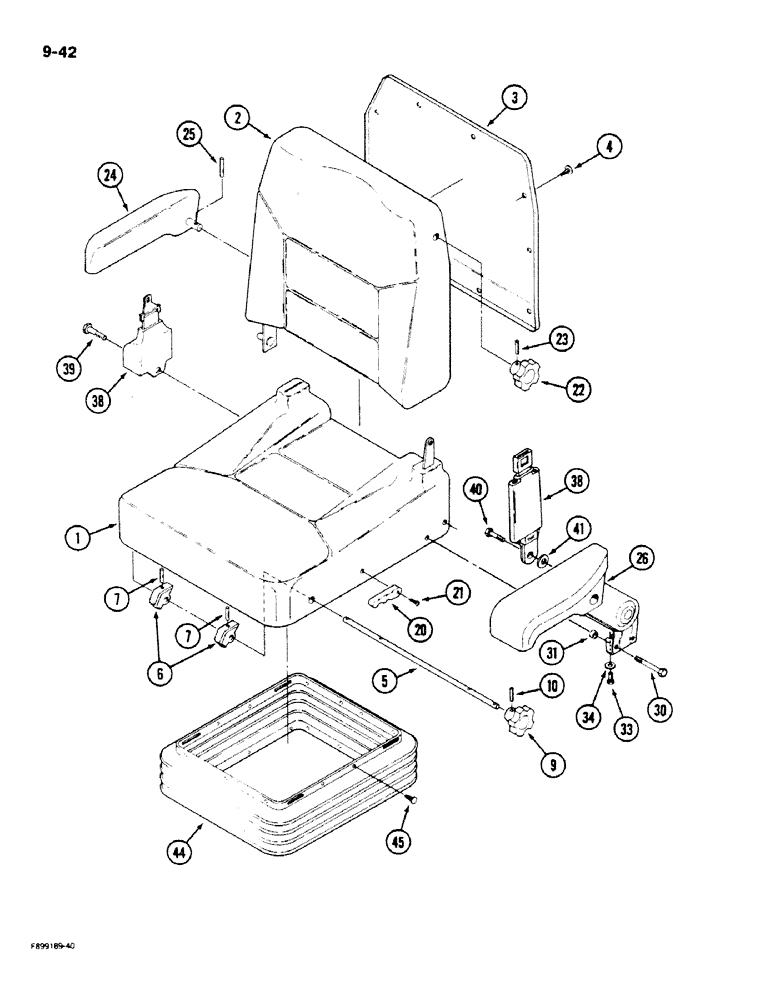

Схема запчастей Case IH 9180 - (9-42) - CLOTH SEAT, AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS
4
1
24
33
31
40
21
6
44
7
41
3
26
5
2
20
38
25
9
34
22
38
7
39
23
30
10
45

Артикул

Название

Примечание

Количество

1340225C1

SEAT

ASSEMBLY - air ride suspension, Includes: Ref. 1 - 41

1шт.

1344004C1

SET OF PARTS

KIT - seat and backrest, Includes: Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - seat (Order 1974701C1), Includes cushion kit, pad and ring

1шт.

1974701C1

SET OF PARTS

CUSHION KIT - seat service

1шт.

NSS

NOT SOLD SEPARAT

PAD - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

48шт.

2

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - backrest (Order 1974702C1), Includes cushion kit, pad and ring

1шт.

1974702C1

SET OF PARTS

CUSHION KIT - backrest service

1шт.

1974702C2-is w/o inside frame.

1шт.

If looking for back cushion w/frame use 132886A1)

1шт.

NSS

NOT SOLD SEPARAT

PAD - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

44шт.

3

1974713C1

PACKAGE

COVER - seat backrest, Includes: Ref. 4

1шт.

4

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

5

1343847C1

SHAFT ASSY.

SHAFT ASSEMBLY - seat tilt, Includes: Ref. 6 and 7

1шт.

6

1343828C1

CAM

- seat tilt

2шт.

7

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

9

1981826C1

KNOB

- seat tilt

1шт.

10

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

20

1974711C1

LEVER

KNOB - backrest tilt

1шт.

21

30299R1

SCREW,Cross Oval Hd, M6 x 12

- machine, oval head cross recess, 6 x 12 mm

1шт.

22

1981828C1

BUTTON

KNOB - lumbar control

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

1974703C2

ARMREST ASSY.

ARMREST KIT - seat, right, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

26

143214A1

ARMREST

KIT - left, with actuating arm and armrest pad (Replaces 1974705C1)

1шт.

26

1974704C1

ARMREST

KIT - seat, left, armrest pad only

1шт.

30

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

31

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

33

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

38

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

39

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

40

25796R1

BOLT,Hex, 7/16" - 20 x 1", Gr 8

- hex, 7/16 NF x 1 inch, Grade 8

1шт.

41

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

44

1981786C1

KIT

BOOT KIT - suspension, Includes: Ref. 45

1шт.

45

1343837C1

SET OF PARTS

PIN - (Bag of 24)

24шт.
