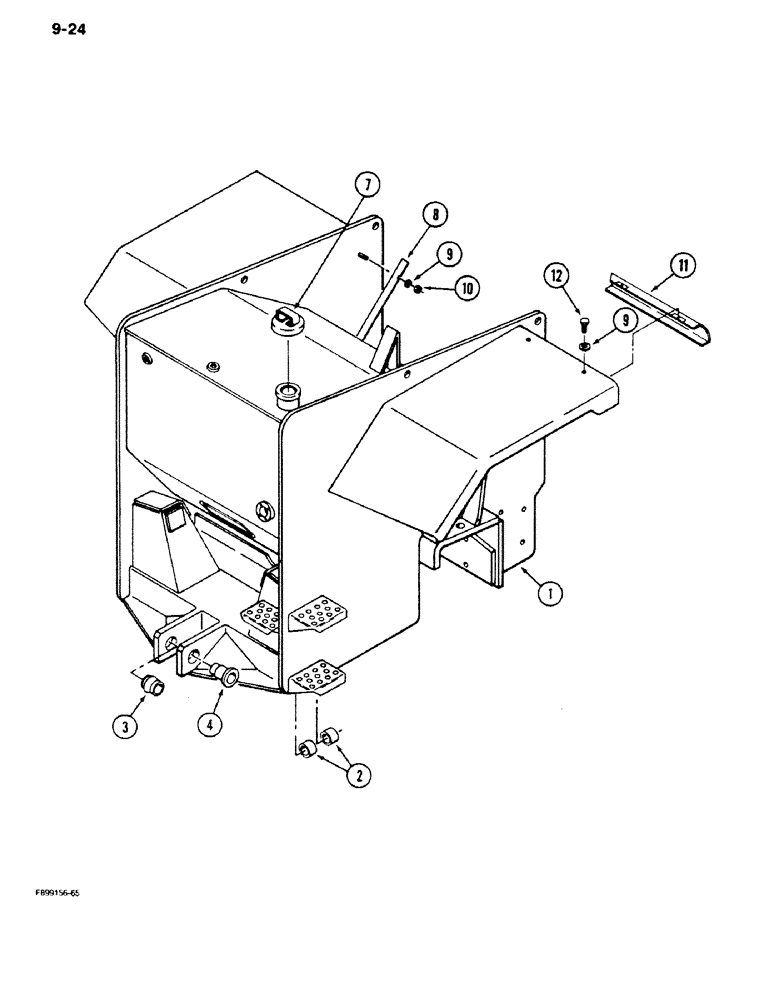

Запчасти Case IH 9180 (9-24) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

70-5415T1

FRAME ASSY

FRAME - rear

1шт.

2

70-1242T1

RING RACE

BUSHING - hinge, upper

2шт.

3

70-1208T1

BUSHING

- frame hinge, front, short

1шт.

4

70-1210T1

BUSHING,57.23mm ID x 76.2mm OD x 77.72mm L

- hinge, front, long

1шт.

7

A162191

CAP

- fuel

1шт.

8

70-4600T1

GUARD

- wire

2шт.

9

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

8шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

11

70-5311T1

SUPPORT

PLATE - light mounting, left (Shown)

1шт.

11

70-5317T1

SUPPORT

PLATE - light mounting, right

1шт.

12

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

- hex, 1/2 NC x 1/2 inch

4шт.

1971726C1

BREATHER,1/4" - 18

fuel tank breather located in fuel line

1шт.
