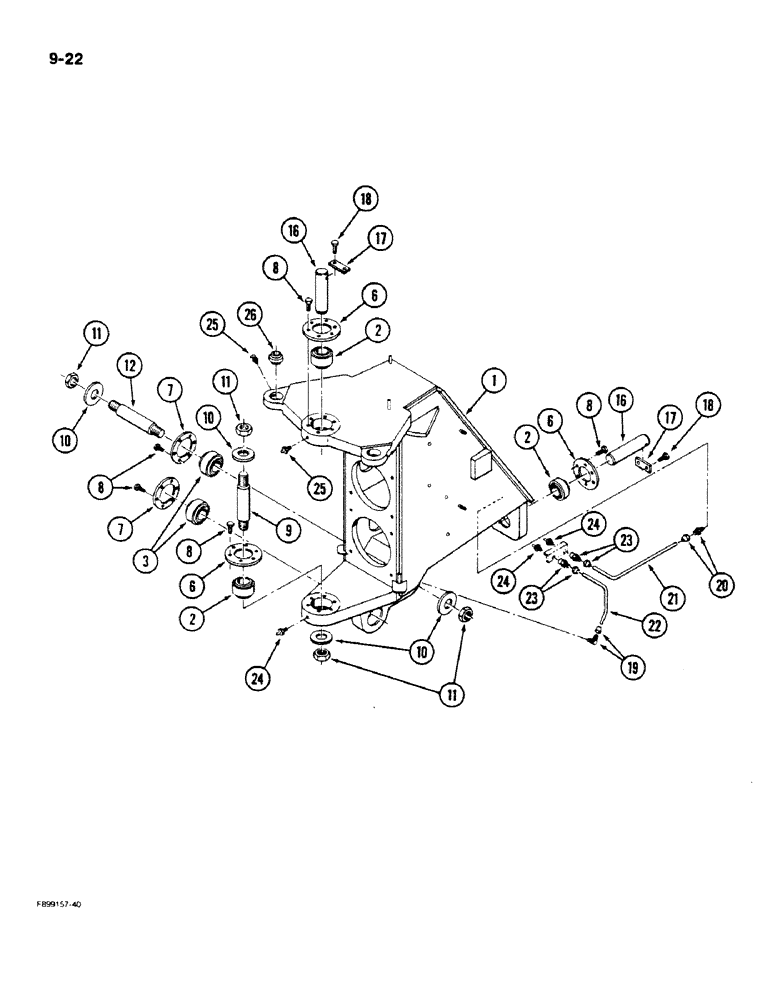

Запчасти Case IH 9180 (9-22) - CENTER HINGE (09) - CHASSIS/ATTACHMENTS

1

70-5482T2

YOKE

HINGE - center, articulation and oscillation, Replaces: 70-5482T2

1шт.

70-6044T1

STOP

1шт.

2

D51018

SPHERICAL BEARING,57.15mm ID x 90.49mm OD x 50.01mm W

BEARING - self aligning

3шт.

If there is a gap between items number 2 and 6 a washer P/N 19-5709 can be installed.

1шт.

3

70-1212T1

SPHERICAL BEARING,57.13mm ID x 100.01mm OD x 58.88mm W

BEARING - uniball

2шт.

6

70-1428T1

RETAINER

- bearing

3шт.

If there is a gap between items number 2 and 6 a washer P/N 19-5709 can be installed.

1шт.

7

70-1429T2

RETAINER

- bearing

2шт.

8

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

30шт.

9

70-1207T1

PIN,57.07mm OD x 277.88mm L

- connecting, threaded 10-15/16 inch

1шт.

10

19-5636

WASHER,39.62mm ID x 88.9mm OD x 9.53mm Thk

- flat, hardened, 1-1/2 x 3-1/2 x 3/8 inch

4шт.

11

19-5641

LOCK NUT,1 1/2"-6, GB

NUT - hex lock, 1-1/2 inch NC

4шт.

12

70-1206T1

PIN,57.07mm OD x 296.67mm L

- connecting, threaded, 11-11/16 inch

2шт.

16

70-1909T1

PIN,57.07mm OD x 207.26mm L

- connecting, 8-5/32 inch

2шт.

17

70-1910T1

RETAINER

- pin

2шт.

18

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/2 inch

4шт.

19

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube

1шт.

20

222-602

FITTING,7/16"-24 x 1/8" NPT, Comp

ADAPTER - straight, 1/8 PT x 1/4 inch tube

1шт.

21

70-2267T1

PIPE

TUBE - grease

1шт.

22

70-2266T1

PIPE

TUBE - grease

1шт.

23

31-2785

FITTING

ADAPTER - straight, 1/8 PT x 1/4 inch tube

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

3шт.

25

31-93

FITTING

- grease, 90 degree, 1/8 inch PT

4шт.

26

15-44

SPHERICAL BEARING

BEARING - self aligning, steering cylinders

2шт.
