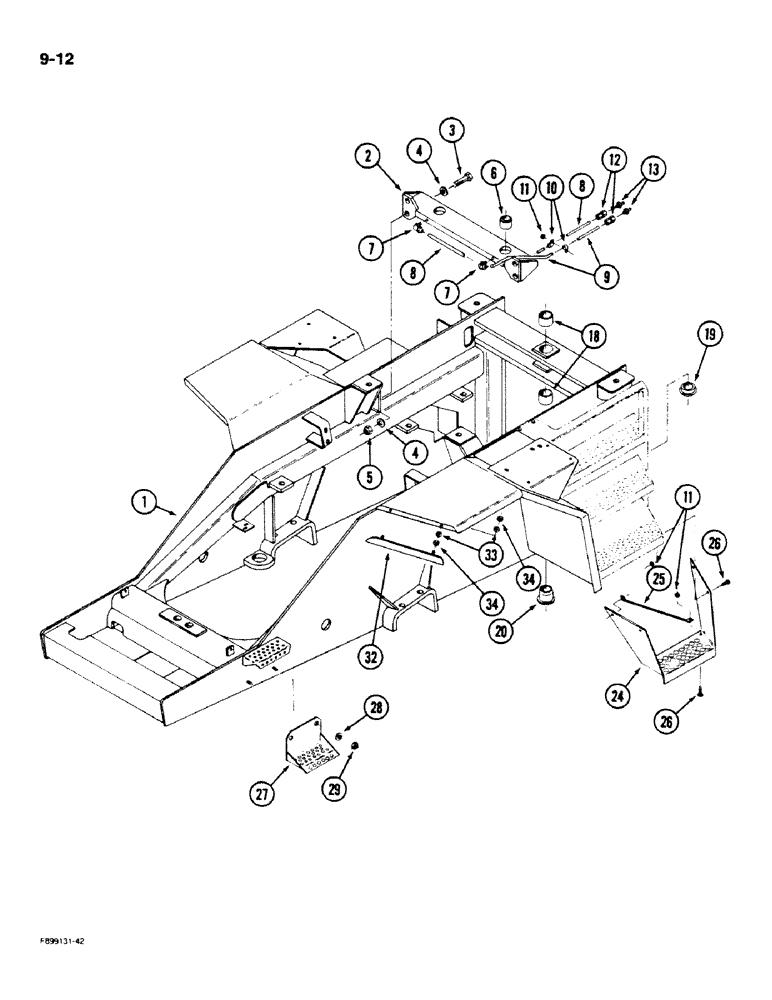

Запчасти Case IH 9180 (9-12) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

70-5366T1

FRAME

- front

1шт.

2

70-4295T1

SUPPORT

PLATE - steering, cylinder front mounting

1шт.

3

25738R1

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch, Grade 8

4шт.

4

19-6120

WASHER

- flat, hardened, 7/8 x 1-3/4 x 5/32 inch

8шт.

5

9422309

LOCK NUT,7/8"-9, GC

NUT - hex lock, 7/8 inch NC

4шт.

6

15-44

SPHERICAL BEARING

BEARING - self aligning, cylinder

2шт.

7

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube

2шт.

8

70-3085T1

PIPE

TUBE - grease

1шт.

9

70-3084T1

PIPE

TUBE - grease

1шт.

10

31-1862

CLAMP

- tube

2шт.

11

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

6шт.

12

31-2785

FITTING

ADAPTER - straight, 1/8 PT x 1/4 inch tube

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

18

70-1242T1

RING RACE

BUSHING - hinge, upper

2шт.

19

70-1209T1

BUSHING

- hinge, lower, top

1шт.

20

70-1210T1

BUSHING,57.23mm ID x 76.2mm OD x 77.72mm L

- hinge, lower, bottom

1шт.

24

70-5107T1

STEP

- rear, bottom

1шт.

25

70-5109T1

FIXING STRIP

STRAP - stabilizer, step

1шт.

26

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

5шт.

27

70-2142T3

STEP

- front

1шт.

28

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

29

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

32

70-2074T2

COVER

- wire protection, right

1шт.

32

70-2073T2

COVER

- wire protection, left (Shown)

1шт.

33

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

8шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
