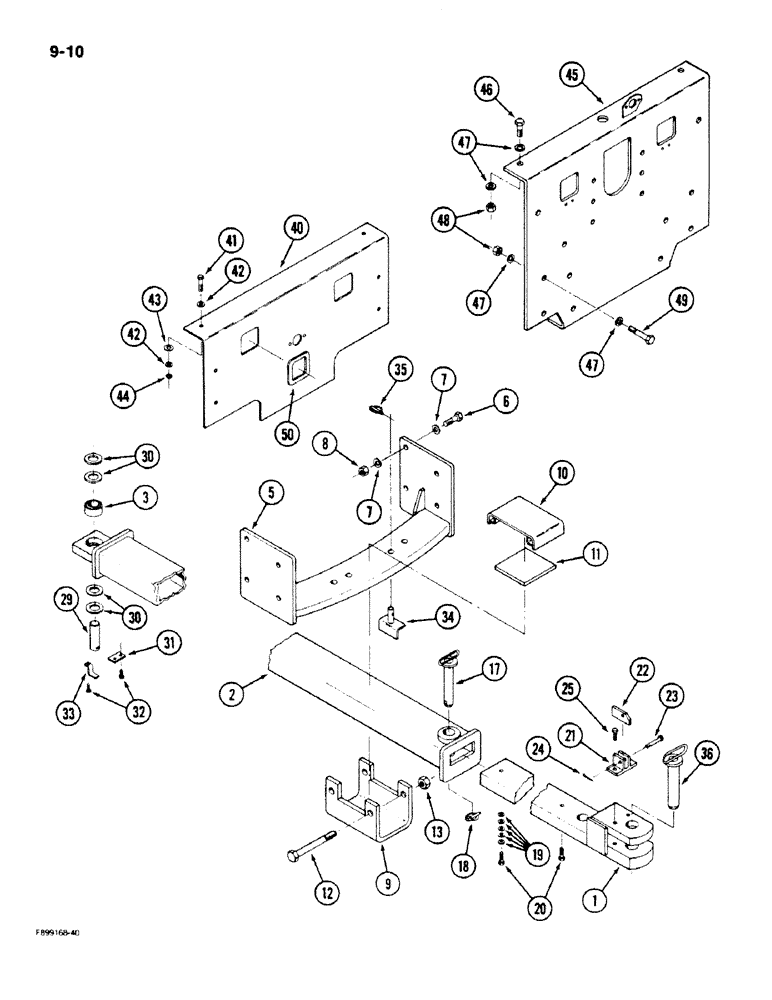

Запчасти Case IH 9180 (9-10) - DRAWBAR, EXTENDABLE (09) - CHASSIS/ATTACHMENTS

1

70-5202T1

DRAWBAR

- extendible

1шт.

2

70-5505T1

PIPE

TUBE - drawbar receiver, Includes: Ref. 3

1шт.

3

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - spherical radial

1шт.

5

70-5511T1

FASTENER

HANGER - drawbar (Without three point hitch) (See Figure 9-4 for hanger with three point hitch)

1шт.

6

19-6173

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, Grade 8

8шт.

7

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch

16шт.

8

19-85

LOCK NUT

- hex lock, 3/4 inch NC

8шт.

9

70-4516T1

CLEVIS

YOKE - drawbar cradle

1шт.

10

70-4555T1

COVER

- slider retaining

1шт.

11

70-4513T2

SKID/SHOE

SLIDER - plastic, drawbar

1шт.

12

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

- hex, 1 NC x 9-1/4 inch, Grade 8

2шт.

13

19-375

LOCK NUT,1" - 8, GB

NUT - hex lock, 1 inch NC

2шт.

17

70-1731T1

PIN

- drawbar retaining

1шт.

18

19-1041

LOCK PIN,7/16" x 2"

PIN - klik

1шт.

19

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

5шт.

20

26-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

2шт.

21

70-1737T1

LATCH

- pin retaining

1шт.

22

1-4906

LATCH

LEVER - pin retaining

1шт.

23

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2 inch

1шт.

24

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

1шт.

25

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

29

70-5509T1

PIN

- drawbar

1шт.

30

70-5542T1

BUSHING

- shim, 1-3/4 x 2-1/2 x 9/64 inch

4шт.

31

70-1910T1

RETAINER

- connecting link pin

1шт.

32

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/2 inch

3шт.

33

70-5544T1

RETAINER

- pin

1шт.

34

70-1937T2

SHAFT LOCK

PIN - slide stop

2шт.

35

517758R91

SPLIT PIN/SAFETY PIN

PIN - klik

2шт.

36

70-1735T1

PIN

- drawbar pull

1шт.

40

70-3029T2

LARGE PLATE

PLATE - rear frame (Without three point hitch and PTO)

1шт.

41

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

6шт.

42

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

12шт.

43

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat, 1/2 x 1-3/4 x 1/8 inch

6шт.

44

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

6шт.

45

70-5151T1

LARGE PLATE

PLATE - rear frame (Without three point hitch) (With PTO)

1шт.

46

223487

BOLT,Hex, 1" - 8 x 3", Gr 8

- hex, 1 NC x 3 inch, Grade 8

4шт.

47

19-5739

WASHER

- flat, hardened, 1 x 2 x 5/32 inch

24шт.

48

19-610

NUT,1"-8, G5

- hex, 1 inch NC

12шт.

49

25998R1

BOLT,1" - 8 x 5 1/2", Gr 8

- hex, 1 NC x 5-1/2 inch, Grade 8

8шт.

50

50-2033T1

GROMMET

- hose protection (Order 31-1785T1 and, Serial Range: cut-length)

2шт.
