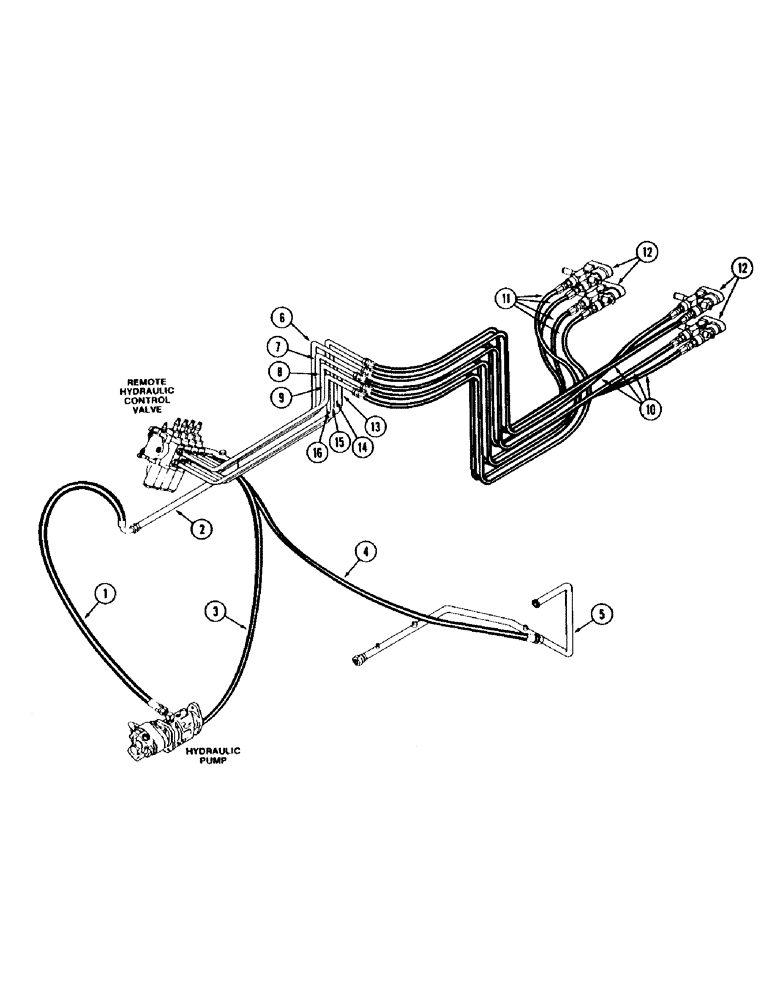

Запчасти Case IH 9180 (1-14) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

1

Remote Hydraulic Control Valve Supply Hose, Page 8-3

1шт.

2

Remote Hydraulic Control Valve Supply Tube, Page 8-3

1шт.

3

Hydraulic Pump Pressure Sensing Hose, Page 8-3

1шт.

4

Remote Hydraulic Control valve Drain Hose, Page 8-3

1шт.

5

Hydraulic Tank Return Tube, Page 8-3

1шт.

6

Remote Coupler Section 1 Pressure Tube, Page 8-9

1шт.

7

Remote Coupler Section 2 Pressure Tube, Page 8-9

1шт.

8

Remote Coupler Section 3 Pressure Tube, Page 8-9

1шт.

9

Remote Coupler Section 4 Pressure Tube, Page 8-9

1шт.

10

Remote Coupler Section 1 and 2 Hose, Page 8-9

1шт.

11

Remote Coupler Section 3 and 4 Hose, Page 8-9

1шт.

12

Remote Hydraulic Coupler, Page 8-9,8-51

1шт.

13

Remote Coupler Section 4 Return Tube, Page 8-9

1шт.

14

Remote Coupler Section 3 Return Tube, Page 8-9

1шт.

15

Remote Coupler Section 2 Return Tube, Page 8-9

1шт.

16

Remote Coupler Section 1 Return Tube, Page 8-9

1шт.
