Запчасти Case IH 9180 (8-40) - REMOTE HYDRAULIC CONTROL (08) - HYDRAULICS

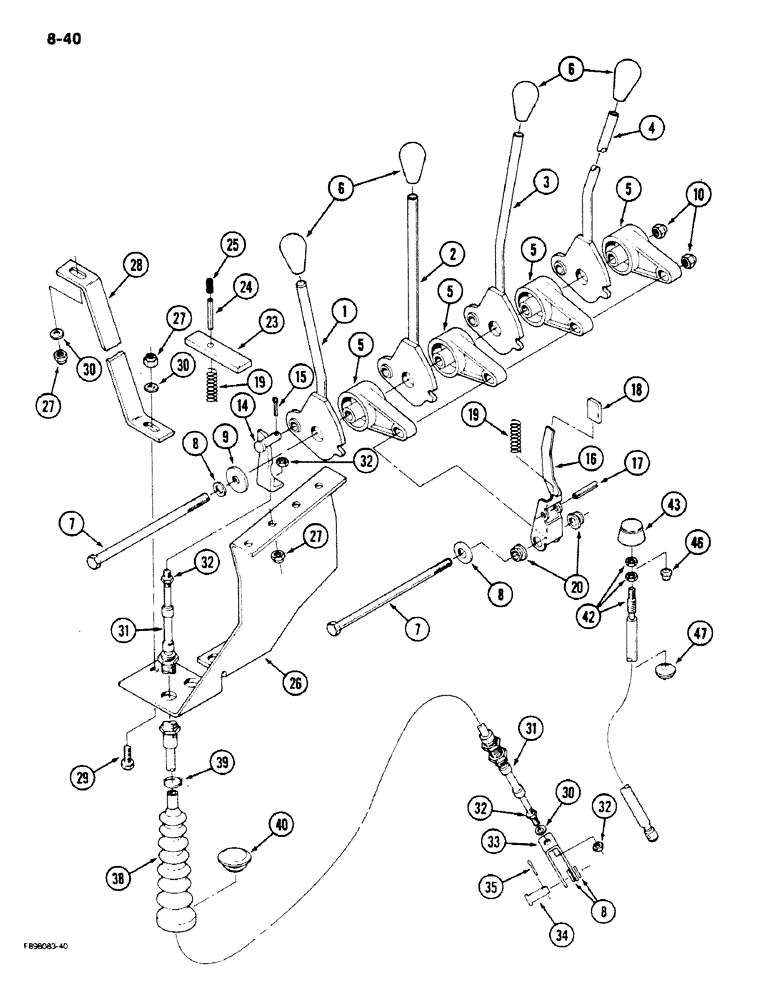

Схема запчастей Case IH 9180 - (8-40) - REMOTE HYDRAULIC CONTROL (08) - HYDRAULICS
7
7
5
27
32
30
4
6
15
24
19
47
35
42
27
31
30
26
19
20
27
5
10
16
8
6
28
40
9
32
5
32
46
23
14
32
3
31
5
29
17
8
30
1
25
39
34
33
43
8
38
2
18

Артикул

Название

Примечание

Количество

1

60-6073T1

LEVER

- control, first remote

1шт.

2

60-6074T1

LEVER

- control, second remote

1шт.

3

60-6075T1

LEVER

- control, third remote

1шт.

4

60-6076T1

LEVER

- control, fourth remote

1шт.

5

60-6067T1

CONTROL LEVER

BUSHING - lever pivot

4шт.

6

60-4346T1

KNOB

- lever, control

4шт.

7

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

2шт.

8

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

10шт.

9

19-6154

WASHER

- flat, nylon, 3/8 x 1-1/4 x 1/16 inch

1шт.

10

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.

14

60-5875T1

DRAG LINK

LINK - cable actuating

4шт.

15

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

4шт.

16

60-6081T1

LEVER

LOCKOUT - lever, control levers

4шт.

17

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

4шт.

18

60-6068T1

CAP

- lever, control

4шт.

19

K-14651

SPRING - lockout, lever

8шт.

20

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BEARING - flanged

8шт.

23

60-3933T1

BRACKET

- lockout, lever

4шт.

24

38-11222

LOCK PIN,3/16" x 1 3/8", Slotted

Pin, (replaces 19-6218) 3/16" x 1 3/8", Slotted

4шт.

R/B 38-11222 SLOTTED SPRING PIN PER ECN F97597

1шт.

25

60-3937T1

CYLINDER END CAP

CAP - lockout, lever

4шт.

26

60-5871T1

PLATE

- mounting, cable

1шт.

27

111626C1

NUT

- hex lock, 1/4 inch NC

6шт.

28

60-5872T1

SUPPORT

- mounting plate

1шт.

29

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT - flanged, 1/4 NC x 3/4

1шт.

30

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

6шт.

31

60-5870T1

KIT

CABLE - valve actuating

4шт.

32

19-936

JAM NUT

- hex jam, 1/4 inch NF

16шт.

33

60-4384T1

CLEVIS COUPLING

YOKE - clevis

4шт.

34

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

35

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

38

60-4279T1

BELLOWS

BOOT - rubber

4шт.

39

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

4шт.

40

22-619

GROMMET

- hole plug (If equipped)

1шт.

42

60-5820T1

CABLE

SHAFT ASSEMBLY - flex, flow control

1шт.

43

60-4339T1

BUTTON

KNOB - flow control

1шт.

46

60-4258T1

PLUG

- flow control access

3шт.

47

64-146

PLUG

- hole, flow control access

3шт.

Выбрано товаров: 38
