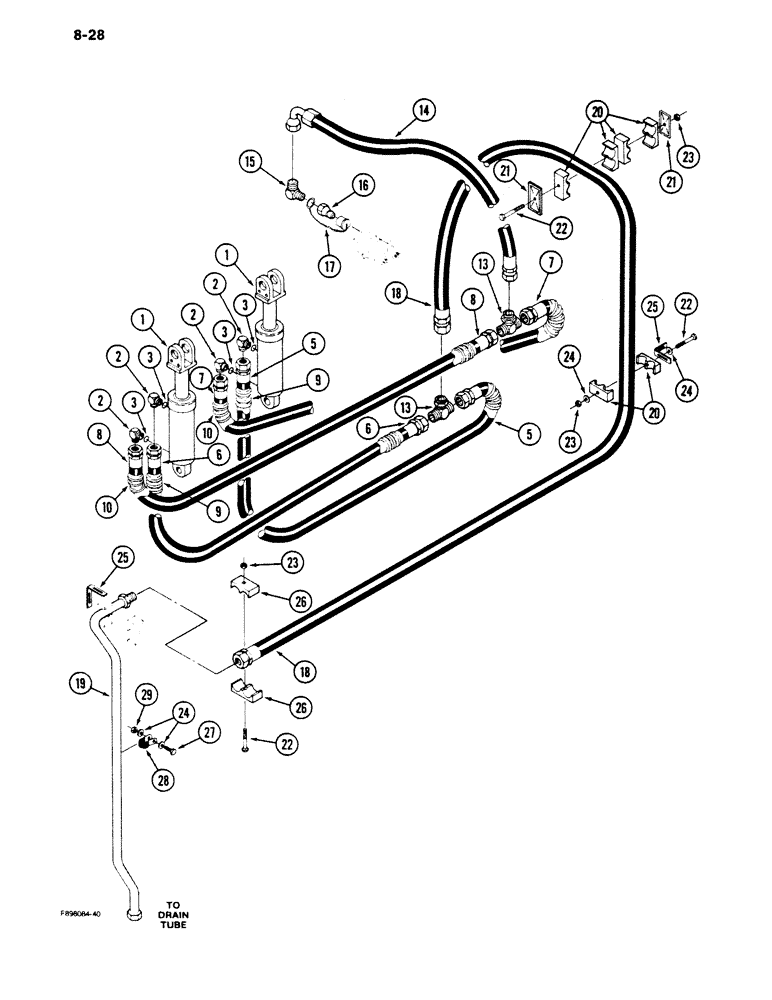

Запчасти Case IH 9180 (8-28) - THREE POINT HITCH HYDRAULICS, MANUAL CONTROLLED HITCH SYSTEM, IF EQUIPPED (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch (See Figure 8-32)

1шт.

2

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, 3/4 inch thread

4шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

4шт.

5

31-1958

HOSE

- drain, cylinder, left

1шт.

6

31-1957

HOSE

- drain, cylinder, right

1шт.

7

31-1795

HOSE

- lift, cylinder, left

1шт.

8

31-1959

HOSE

- lift, cylinder, right

1шт.

9

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order S119717 and, Serial Range: cut-length)

2шт.

10

50-2962T1

CONDUIT

GUARD - hose protector, 23 inch (Order S119717 and, Serial Range: cut-length)

2шт.

13

31-1800

TEE,7/8"-14, 37 Degree, Blkhd

- adjustable, 7/8 inch thread

2шт.

14

32-244

HOSE

- tee to hydraulic coupler

1шт.

15

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

1шт.

16

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

17

1-7142

CAP

- coupler dust, rubber

1шт.

18

31-2811

HOSE,0.63" ID x 130.00"

Drain, Tee to Drain Tube 0.63" ID x 130.00"

1шт.

19

50-3190T1

HYD TUBE

TUBE - drain, hose to hydraulic tank return tube

1шт.

20

50-2534T1

CLAMP

- split, halves

6шт.

21

50-2533T1

PLATE

COVER - clamp

2шт.

22

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

23

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

24

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

4шт.

25

50-3017T1

SUPPORT

BRACKET - mounting, clamp

2шт.

26

50-2551T1

CLAMP

- tube, split, halves

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35-1763T91

KIT

- manual three point hitch, for tractors equipped with or without a PTO system (machinery item)

1шт.
