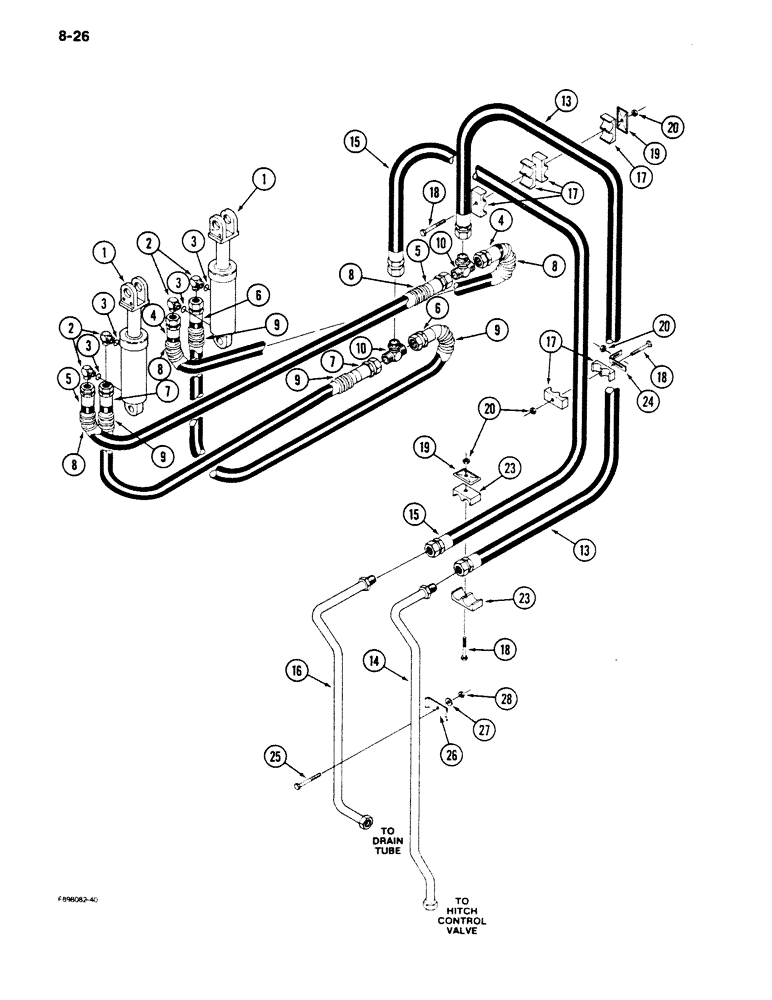

Запчасти Case IH 9180 (8-26) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch (See Figure 8-32)

2шт.

2

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, 3/4 inch thread, Includes: Ref. 3

4шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

4шт.

4

31-1795

HOSE

- tee to cylinder, lift, left, 30 inch

1шт.

5

31-1959

HOSE

- tee to cylinder, lift, right, 54-1/2 inch

1шт.

6

31-1958

HOSE

- tee to cylinder, drain, left, 62 inch

1шт.

7

31-1957

HOSE

- tee to cylinder, drain, right, 39 inch

1шт.

8

50-2962T1

CONDUIT

GUARD - hose protector, 23 inch

2шт.

9

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order protector S119717 and, Serial Range: cut-length)

2шт.

10

31-1800

TEE,7/8"-14, 37 Degree, Blkhd

- bulkhead, 7/8-14 inch thread

2шт.

13

31-2810

HOSE,0.63" ID x 117.00"

Hitch Control Valve Tube to Tee 0.63" ID x 117.00"

1шт.

14

50-3190T1

HYD TUBE

TUBE - hitch control valve to lift hose

1шт.

15

31-2811

HOSE,0.63" ID x 130.00"

Tube to Tee, Cylinder Drain 0.63" ID x 130.00"

1шт.

16

50-3191T1

HYD TUBE

TUBE - drain hose to drain tube

1шт.

17

50-2534T1

CLAMP

- split, halves

6шт.

18

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

19

50-2533T1

PLATE

COVER - clamp

2шт.

20

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

23

50-2551T1

CLAMP

- hose, split, halves

2шт.

24

50-3017T1

SUPPORT

BRACKET - mounting, clamp

2шт.

25

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

26

90-5971T1

CLAMP

- tube

1шт.

27

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
