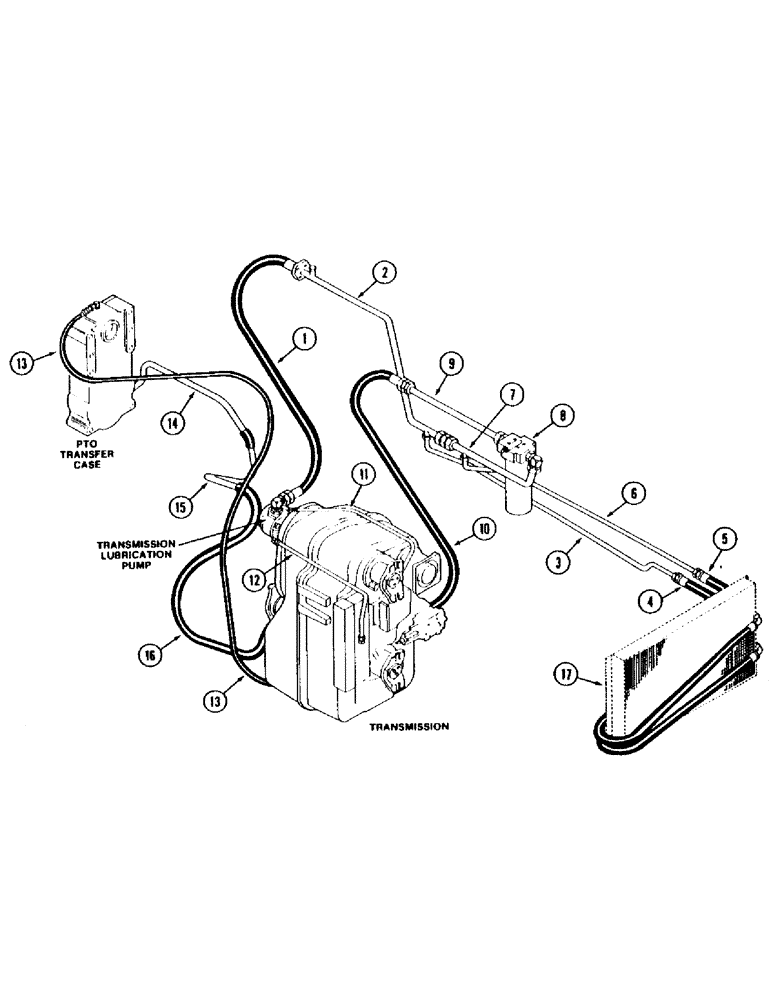

Запчасти Case IH 9180 (1-12) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

1

Transmission Lubrication Supply Hose, Page 6-43

1шт.

2

Transmission Lubrication Supply Tube, Page 6-43

1шт.

3

Oil Cooler Supply Tube, Page 6-43

1шт.

4

Oil Cooler Supply Hose, Page 6-43

1шт.

5

Oil Cooler Return Hose, Page 6-43

1шт.

6

Oil Cooler Return Tube, Page 6-43

1шт.

7

Oil Filter Supply Tube, Page 6-43

1шт.

8

Oil Filter, Page 8-21

1шт.

9

Oil Filter Outlet Tube, Page 6-43

1шт.

10

Transmission Lubrication Supply Hose, Page 6-43

1шт.

11

Transmission Lubrication Tube, Page 6-45

1шт.

12

Transmission Lubrication Tube, Page 6-45

1шт.

13

PTO Transfer Case Lubrication Hose, Page 6-45

1шт.

14

PTO Transfer Case Return Tube, Page 6-45

1шт.

15

PTO Transfer Case Return Tube, Page 6-45

1шт.

16

PTO Transfer Case Return Hose, Page 6-45

1шт.

17

Oil Cooler, Page 8-23

1шт.
