Запчасти Case IH 9180 (8-20) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

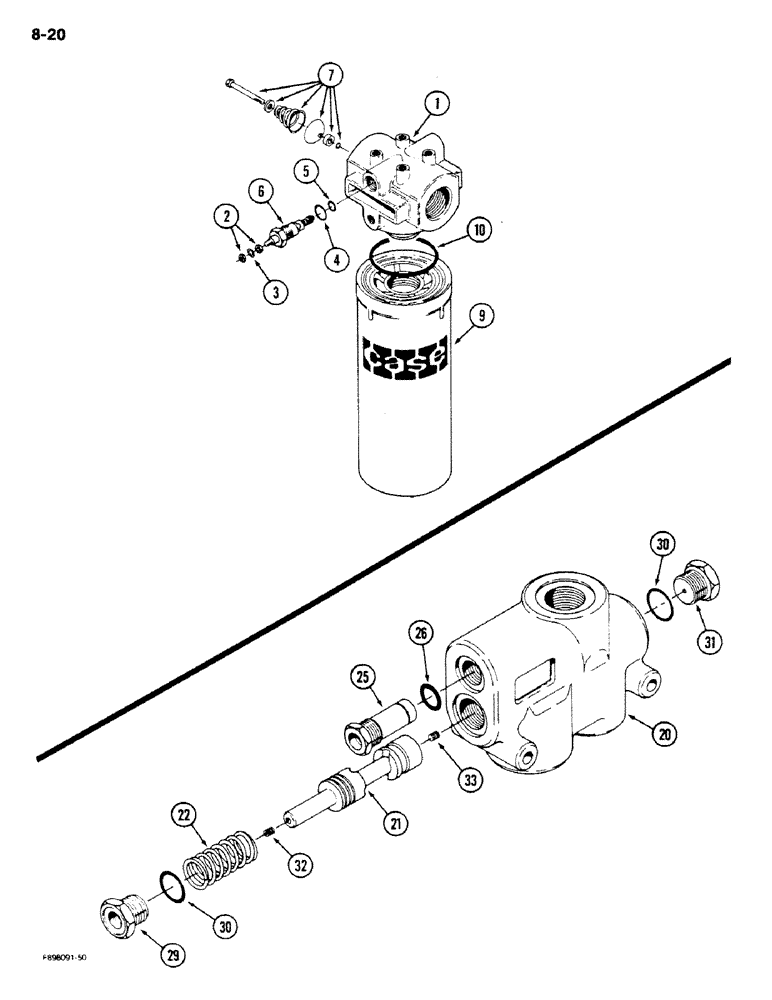

Схема запчастей Case IH 9180 - (8-20) - HYDRAULIC OIL FILTER (08) - HYDRAULICS
1
20
33
21
9
29
22
10
30
30
31
26
32
3
25
7
2
5
6
4

Артикул

Название

Примечание

Количество

D131293

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter, Includes: Ref. 2 - 10

1шт.

N6755

PRESSURE SWITCH

RESTRICTION INDICATOR ASSEMBLY - electric KIT - restriction indicator repair, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner

1шт.

6

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT - filter replacement, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

10

N9026

O-RING

-, Serial Range: filter-head

1шт.

50-3155T91

VALVE

ASSEMBLY - priority, Includes: Ref. 20 - 33

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - priority valve

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - priority valve

1шт.

22

D82777

SPRING

- centering, priority valve

1шт.

25

50-3035T91

CARTRIDGE

ASSEMBLY - relief valve (Replaces 90-7094T1), priority, Includes: Ref. 26

1шт.

26

50-1872T1

O-RING

- relief cartridge, priority valve

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG - orificed, priority valve

1шт.

30

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch, priority valve

2шт.

31

NSS

NOT SOLD SEPARAT

PLUG - end, priority valve

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG - orificed, priority valve

1шт.

33

NSS

NOT SOLD SEPARAT

PLUG - spool, priority valve

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 23
