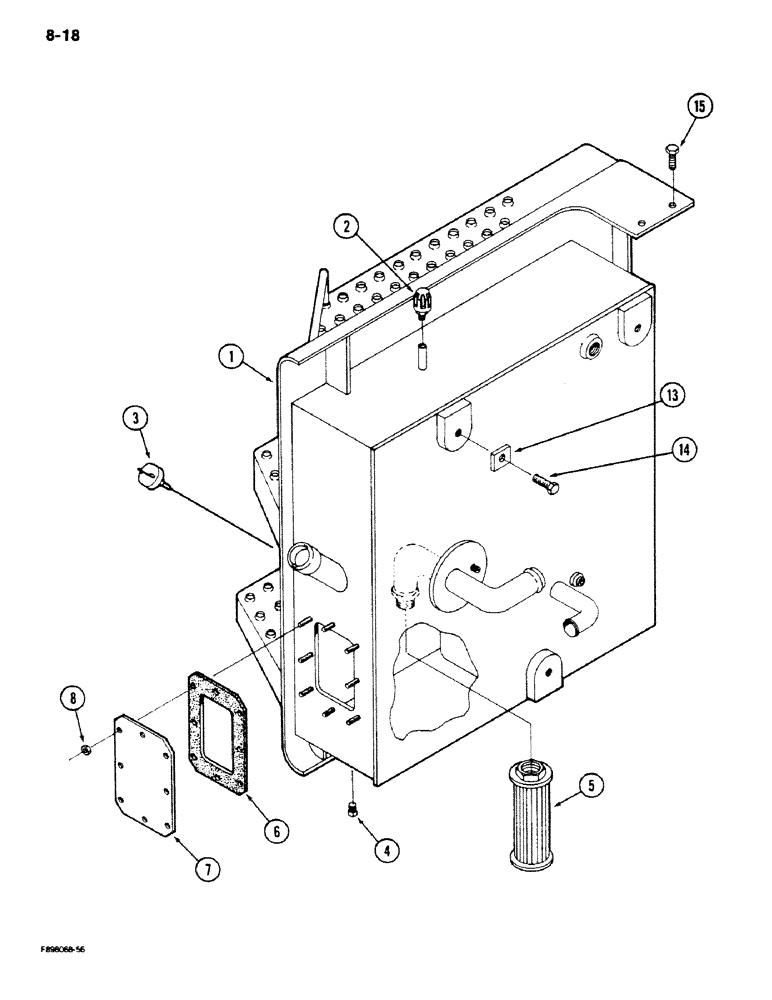

Запчасти Case IH 9180 (8-18) - HYDRAULIC TANK (08) - HYDRAULICS

1

50-3201T1

RESERVOIR, HYDRAULIC

TANK - hydraulic, with steps

1шт.

2

1971726C1

BREATHER,1/4" - 18

- hydraulic tank

1шт.

3

47-3580

DIPSTICK

- oil check

1шт.

4

31-35

PLUG

- pipe, square head, 1/2 inch PT

1шт.

5

50-2029T1

FILTER SCREEN

FILTER - suction, screen

1шт.

6

2-1914

GASKET

- cover

1шт.

7

1-4058

PLATE

COVER - plate, hydraulic tank

1шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

8шт.

13

70-4268T1

WASHER - flat, rectangular

3шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.
