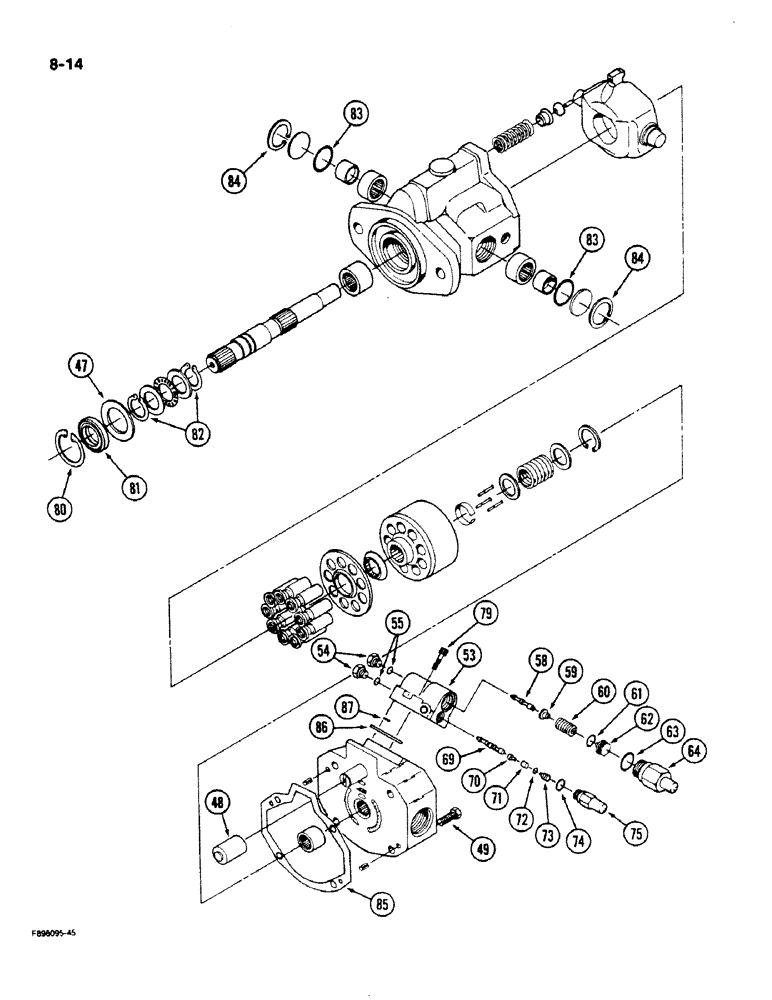

Запчасти Case IH 9180 (8-14) - HYDRAULIC PISTON PUMP ASSEMBLY, (CONT) (08) - HYDRAULICS

50-3274T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - piston, Includes: Ref. 47 - 87 and 1 - 42 on Fig. 8-12

1шт.

47

D66330

WASHER

- flat, 1-19/32 x 2 x 5/64 inch

1шт.

48

50-2802T1

PISTON

- control, cam plate

1шт.

49

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

4шт.

50-2810T91

EQUALIZER

COMPENSATOR ASSEMBLY - pump, Includes: Ref. 53 - 75

1шт.

53

NSS

NOT SOLD SEPARAT

BODY - compensator

1шт.

54

50-2812T91

O-RING

- o-ring, Includes: Ref. 55

2шт.

55

1971623C1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

- 19/64 ID x 1/16 inch

2шт.

Part of Seal Kit P/N 50-2825T91

1шт.

58

NSS

NOT SOLD SEPARAT

SPOOL - pressure

1шт.

59

50-2814T1

SPRING SEAT

CAP - spring pivot

1шт.

60

A45144

SPRING

- spool

1шт.

61

A64436

O-RING,0.549" ID x 0.755" OD

- 9/16 x 3/4 x 3/32 inch

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.

62

50-2817T1

PISTON

FOLLOWER - pressure spring

1шт.

63

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- 7/8 x 1-1/16 inch

1шт.

64

50-2819T1

CAP

- pressure adjuster

1шт.

69

NSS

NOT SOLD SEPARAT

SPOOL - flow

1шт.

70

50-2820T1

SPRING SEAT

PIVOT - spring

1шт.

71

50-2821T1

SPRING

- spool

1шт.

72

50-2822T1

O-RING

- seal.

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.

73

50-2823T1

PISTON

FOLLOWER - flow spring

1шт.

74

50-1821T1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING - adjuster cap

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.

75

50-2824T1

CAP

- flow adjuster

1шт.

79

138203

HEX SOC SCREW,1/4" - 20 x 1 1/4", Gr 8

BOLT - socket, 1/4 NC x 1-1/4 inch, Grade 8

4шт.

80

D41419

RING

- snap

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.

81

D73667

SEAL,28.57mm ID x 50.98mm OD x 6.35mm Thk

- shaft, drive

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.

82

454319R1

RING

- snap

2шт.

Part of Seal Kit P/N 50-2825T91

1шт.

83

22277R1

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- 1-7/16 x 1-5/8 inch

2шт.

Part of Seal Kit P/N 50-2825T91

1шт.

84

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

Part of Seal Kit P/N 50-2825T91

1шт.

85

N7804

GASKET

- housing

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.

86

1266917C1

GASKET

- housing (Replaces N7804)

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.

87

50-2809T1

O-RING

- seal, compensator

1шт.

Part of Seal Kit P/N 50-2825T91

1шт.
