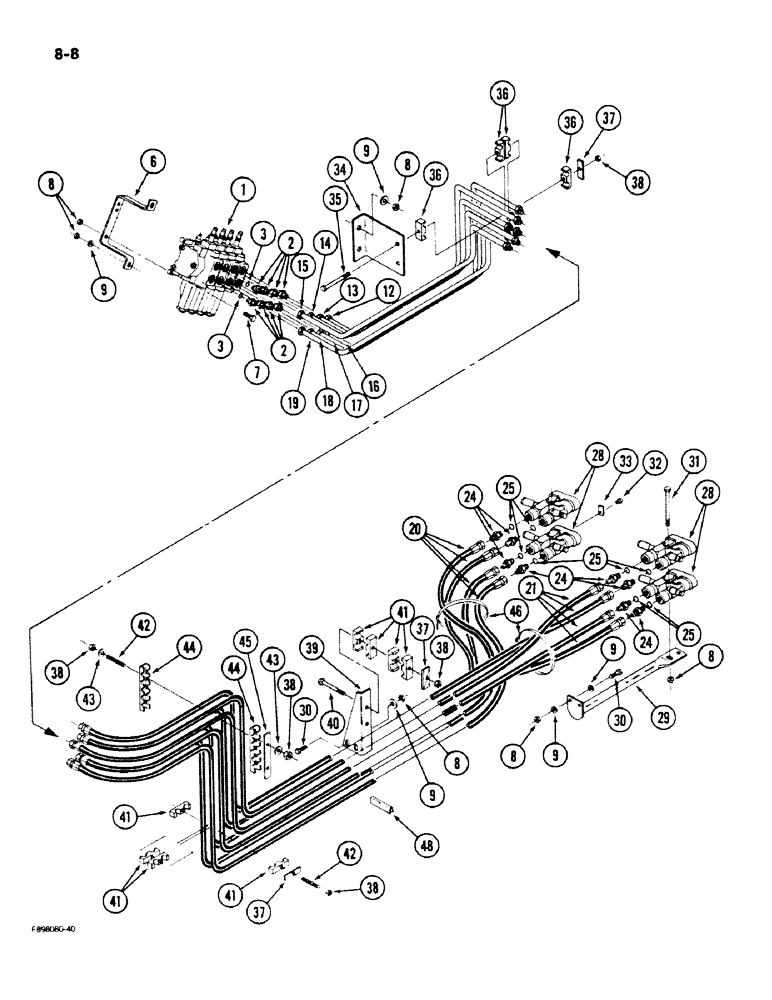

Запчасти Case IH 9180 (8-08) - HYDRAULIC COUPLERS AND LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-42)

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 3

8шт.

3

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

8шт.

6

50-3042T1

SUPPORT

BRACKET - valve mounting

2шт.

7

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

19шт.

9

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

12шт.

12

50-3010T1

HYD TUBE

TUBE - remote pressure, Section 1

1шт.

13

50-3008T1

HYD TUBE

TUBE - remote pressure, Section 2

1шт.

14

50-3006T1

HYD TUBE

TUBE - remote pressure, Section 3

1шт.

15

50-3004T1

HYD TUBE

TUBE - remote pressure, Section 4

1шт.

16

50-3011T1

HYD TUBE

TUBE - remote return, Section 1

1шт.

17

50-3009T1

HYD TUBE

TUBE - remote return, Section 2

1шт.

18

50-3007T1

HYD TUBE

TUBE - remote return, Section 3

1шт.

19

50-3005T1

HYD TUBE

TUBE - remote return, Section 4

1шт.

20

31-2813

HOSE ASSY.

HOSE - tube to couplers, right, 143-1/2 inch

4шт.

21

31-2812

HOSE

- tube to couplers, left, 127 inch

4шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 25

8шт.

25

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

8шт.

28

REF

INSTRUCTION

COUPLER ASSEMBLY - remote hydraulic (See Figure 8-50)

2шт.

29

50-2880T1

SUPPORT

MOUNT - coupler

2шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

31

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch

4шт.

31

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch

2шт.

32

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

33

50-2778T1

PLATE

MARKER - coupler, No. 1

1шт.

33

50-2779T1

PLATE

MARKER - coupler, No. 2

1шт.

33

50-2780T1

PLATE

MARKER - coupler, No. 3

1шт.

33

50-2781T1

PARTITION

MARKER - coupler, No. 4

1шт.

34

50-3015T1

SUPPORT

BRACKET - clamp mounting

1шт.

35

19-333

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

2шт.

36

50-2551T1

CLAMP

- tube, split, halves

8шт.

37

50-2533T1

PLATE

COVER - clamp

6шт.

38

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

39

50-3215T1

SUPPORT

BRACKET - clamp mounting

1шт.

40

19-726

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch

2шт.

40

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

41

50-2534T1

CLAMP

- split, halves

16шт.

42

50-3217T1

STUD

- clamp mounting

4шт.

43

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

44

50-3166T1

SUPPORT

BRACKET - clamp, hose

2шт.

45

50-3189T1

LARGE PLATE

PLATE - clamp, hose

1шт.

46

50-2037T1

STRAP

- nylon

2шт.

47

2-7088T1

GASKET

GROMMET - hose protection, rear of rear frame

2шт.

48

50-2034T1

GROMMET

- hose protection, front of rear frame

1шт.

35-1757T91

KIT

- fourth spool valve (Includes parts needed to add an additional remote hydraulic spool)(Machinery item)

1шт.
