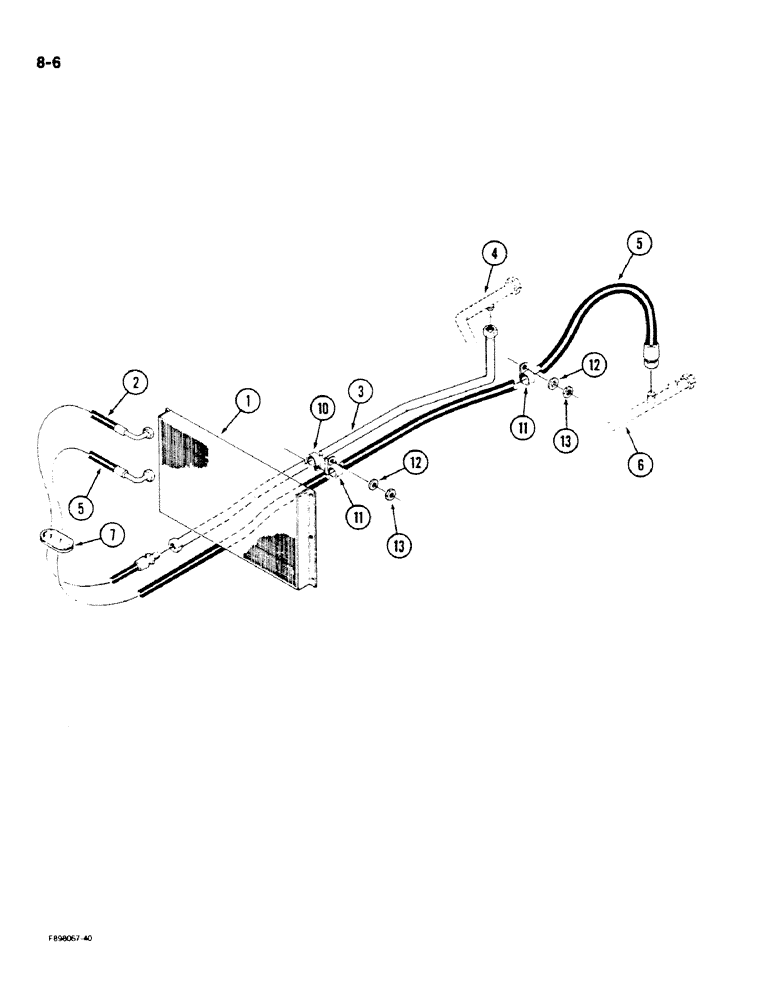

Запчасти Case IH 9180 (8-06) - HYDRAULIC SYSTEM, OIL COOLER LINES (08) - HYDRAULICS

1

90-6708T1

OIL COOLER

COOLER - oil, hydraulic (See Figure 8-22 for mounting)

1шт.

2

31-2761

HOSE

- oil cooler to tube, 80 inch

1шт.

3

50-3254T1

HYD TUBE

TUBE - cooler supply

1шт.

4

REF

INSTRUCTION

TUBE - to oil filter (See Figure 8-2)

1шт.

5

31-2865

HOSE

- cooler to return tube

1шт.

6

REF

INSTRUCTION

TUBE - hydraulic oil return (See Figure 8-2)

1шт.

7

31-1786

GROMMET

- hose protection

1шт.

10

31-2488

CLAMP

- tube

1шт.

11

308576R1

CLAMP

- retaining

4шт.

12

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

4шт.

13

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
