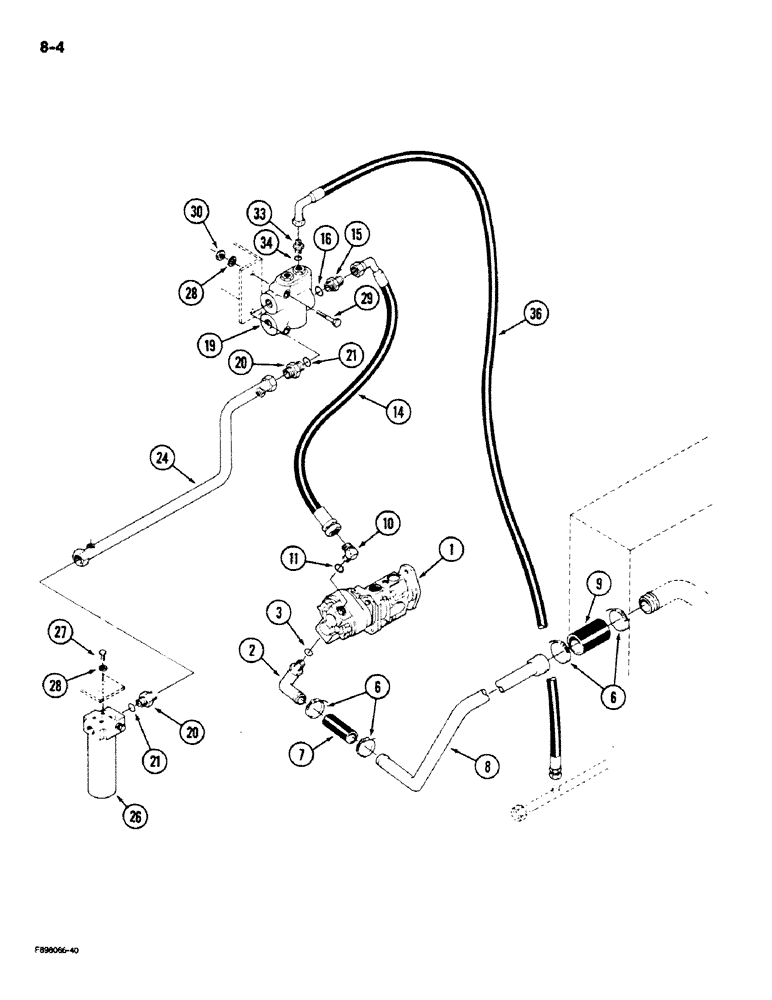

Запчасти Case IH 9180 (8-04) - HYDRAULIC SYSTEM, PUMP TO FILTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-10)

1шт.

2

31-1394

ELBOW

- 90 degree adjustable, 1-5/8-12 x 1-1/2 inch, Includes: Ref. 3

1шт.

3

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

6

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

4шт.

7

1-4571

HOSE

- suction, 1-1/4 x 4 inch (Order 1-4482T1;, Serial Range: cut-length)

1шт.

8

50-3230T1

HYD TUBE

TUBE - supply, pump to hydraulic tank

1шт.

9

31-2427

HOSE,2.00" ID x 6.00"

; Order 1-4568T1, and Cut to Required Length 2.00" ID x 6.00"

1шт.

10

31-368

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree, adjustable, 1-1/16 x 1-5/16 inch thread, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

14

31-2846

HOSE

- pump to priority valve

1шт.

15

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - short, 1-5/16 flared x 1-5/16 inch O-ring boss, Includes: Ref. 16

1шт.

16

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 8-20)

1шт.

20

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16 x 1-5/8 inch thread, Includes: Ref. 21

2шт.

21

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

2шт.

24

50-3256T1

HYD TUBE

TUBE - priority, Serial Range: valve-filter

1шт.

26

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic (See Figure 8-20)

1шт.

27

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

2шт.

28

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/32 inch

4шт.

29

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

30

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.

33

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 inch thread, Includes: Ref. 34

1шт.

34

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

36

31-2285

HOSE

- priority valve to return tube

1шт.
