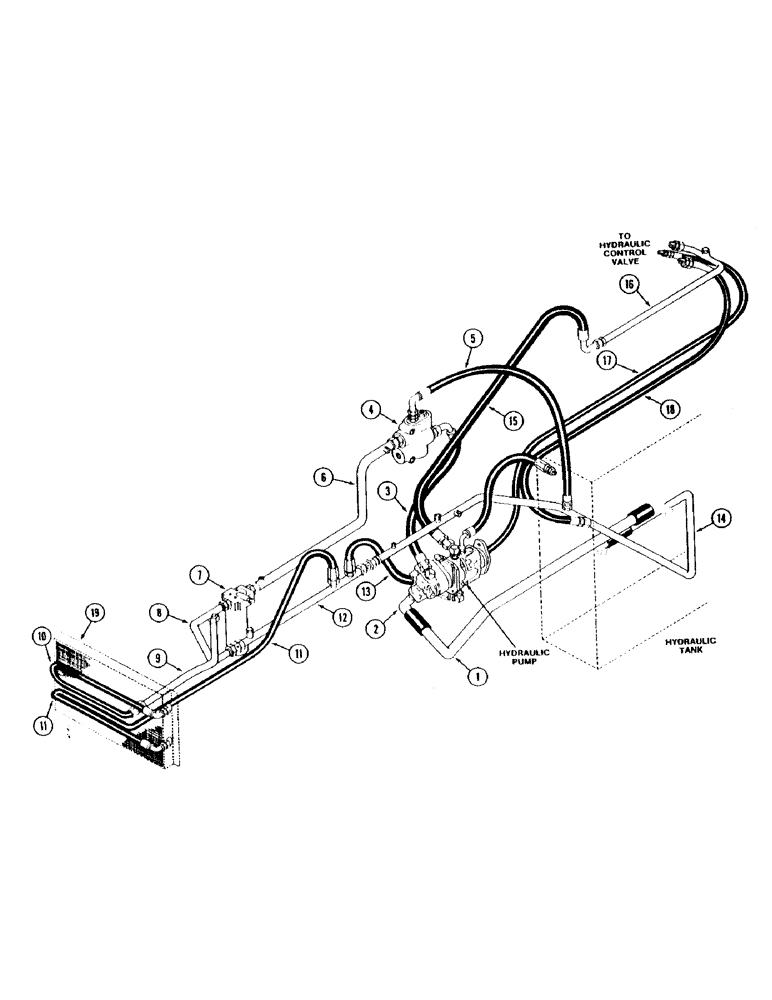

Запчасти Case IH 9180 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Gear Pump Inlet Tube, Page 8-5

1шт.

2

Gear Pump Inlet Elbow, Page 8-5

1шт.

3

Gear Pump Outlet Hose, Page 8-5

1шт.

4

Priority valve, Page 8-5, 8-21

1шт.

5

Priority Valve Drian Hose, Page 8-5

1шт.

6

Priority Valve To Filter Tube, Page 8-5

1шт.

7

Oil Filter, Page 8-3,8-5,8-21

1шт.

8

Filter Outlet Tube, Page 8-3

1шт.

9

Oil Cooler Inlet Tube, Page 8-7

1шт.

10

Oil Cooler Inlet Hose, Page 8-7

1шт.

11

Oil Cooler Outlet Hose, Page 8-7

1шт.

12

Hydraulic Pump Supply Tube, Page 8-3

1шт.

13

Hydraulic Pump Supply Hose, Page 8-3

1шт.

14

Hydraulic Return Tube, Page 8-3

1шт.

15

Hydraulic Control Valve Supply Hose, Page 8-3

1шт.

16

Hydraulic Control Valve Supply Tube, Page 8-3

1шт.

17

Hydraulic Pump Pressure Sensing Hose, Page 8-3

1шт.

18

Hydraulic Control Valve Drain Hose, Page 8-3

1шт.

19

Oil Cooler, Page 8-7,8-23

1шт.
