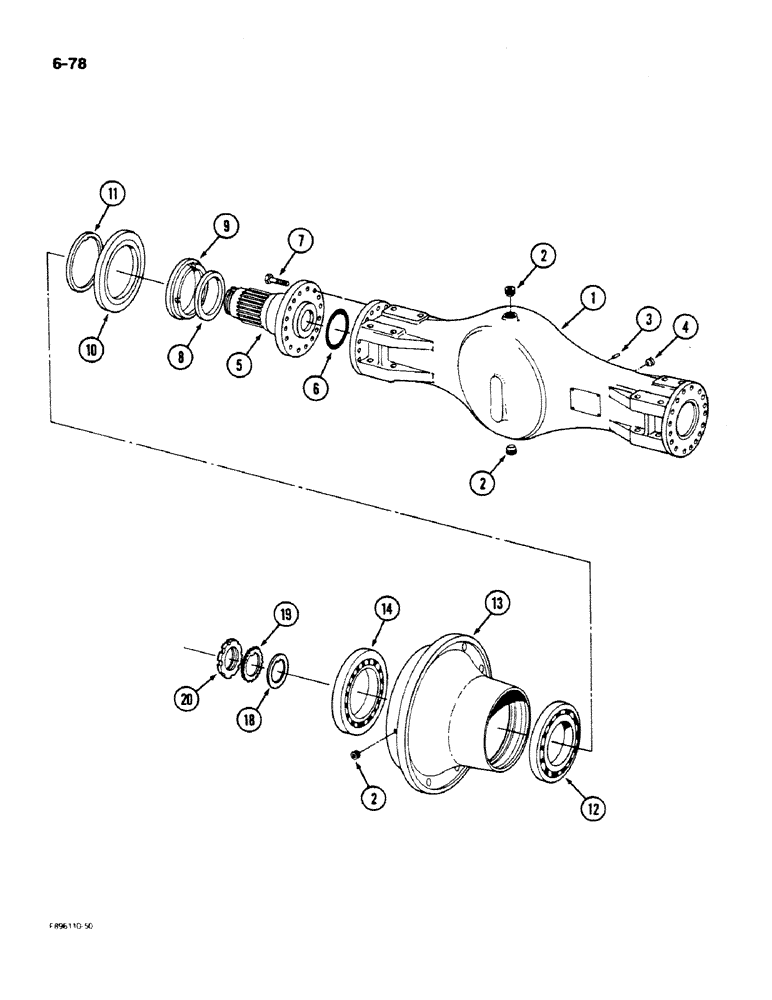

Запчасти Case IH 9180 (6-78) - AXLE ASSEMBLY, HOUSING AND WHEEL HUB, K598.85/95 SERIES (06) - POWER TRAIN

90-6992T91

4WD AXLE ASSY

AXLE ASSEMBLY - front (With traction control), Includes: Ref. 1 - 20

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear (With traction control), Includes: Ref. 1 - 20

1шт.

1

90-7176T1

HOUSING

- axle, front or rear

1шт.

2

90-4484T1

PLUG

- magnetic, 24 mm - 1.5

4шт.

3

90-4485T1

DOWEL

PIN - dowel, 10 x 25 mm

1шт.

4

90-2523T1

PLUG

- 24 mm - 1.5

1шт.

5

90-4481T1

LARGE PIN

AXLE - stub housing, left or right

2шт.

6

16-1505

O-RING,136mm ID x 15mm Width

- seal, 135 x 5 mm

2шт.

7

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

BOLT - hex

32шт.

8

90-5989T1

SEALING RING

SEAL - stub axle

2шт.

9

90-7086T1

RING

- shoulder

2шт.

10

90-5988T1

SEALING RING

ASSEMBLY - stub axle

2шт.

11

90-4477T1

DISC

- spacer

2шт.

12

90-4500T1

TAPERED BEARING,169.97mm ID x 239.97mm OD x 0mm W

- taper roller

2шт.

13

90-4499T1

HUB

- wheel, left or right

2шт.

14

90-4498T1

TAPERED BEARING,170mm ID x 230mm OD x 32mm W

- taper roller

2шт.

18

90-4497T1

DISC

- spacer

2шт.

19

90-4496T1

LOCK WASHER

- lock, adjusting nut

2шт.

20

90-4495T1

NUT

- shaft end

2шт.
