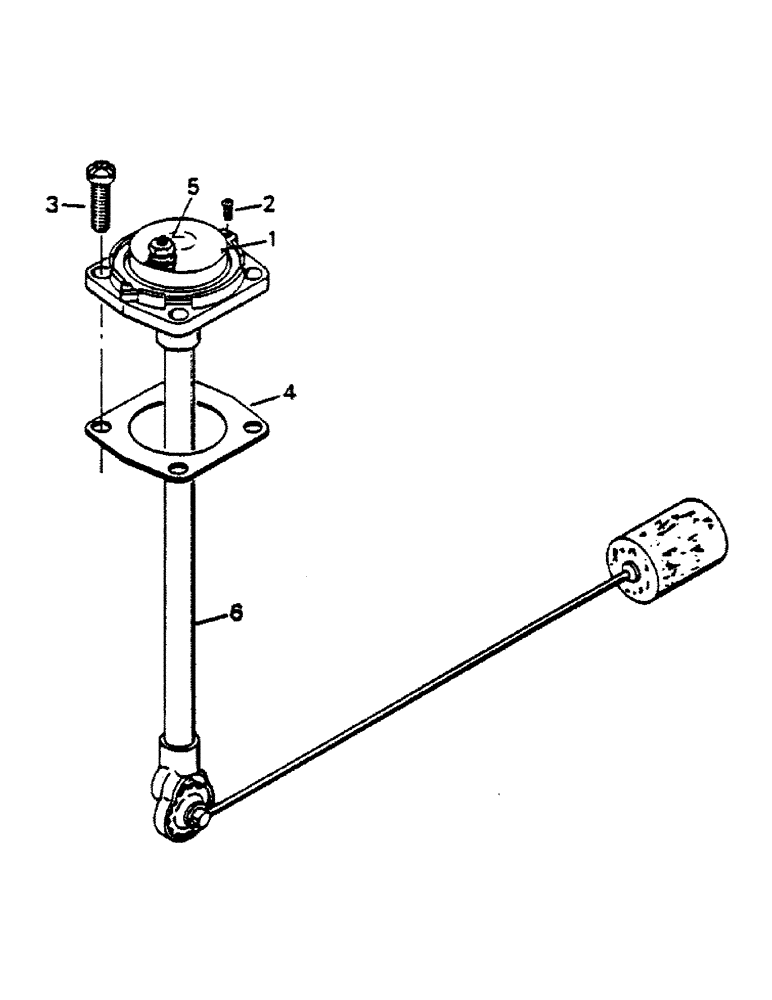

Запчасти Case IH 9180 (02-18) - FUEL GAUGE SENDER ASSEMBLY (06) - ELECTRICAL

20-1378T91

SENDER UNIT

FUEL GAUGE SENDER ASSY, Includes: Ref. 1 - 6

1шт.

1

20-1379T1

DIAL

1шт.

2

159229

SCREW,Cross Pan Hd, #6 - 32 x 1/4"

MACHINE SCREW, #6 UNC x 1/4

2шт.

3

19-5814

BOLT (MACHINE),Pan, 5/16" x 5/8"

MACHINE SCREW, 5/16 UNF x 5/8

4шт.

4

20-1380T1

GASKET

1шт.

5

19-308

NUT,#10 - 32

#10 UNF G-A

1шт.

6

NSS

NOT SOLD SEPARAT

SENDER ASSY

1шт.
