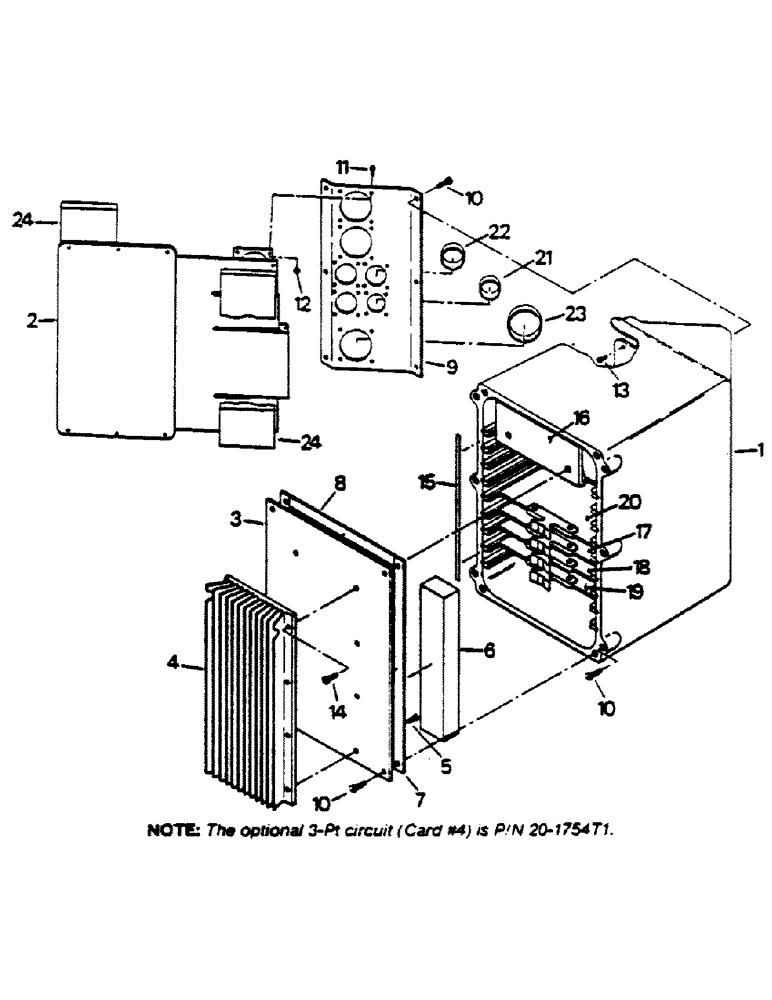

Запчасти Case IH 9180 (02-14) - ELECTRONIC CONTROL CENTER ASSEMBLY (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
20-2393T91
BOX
ELECTRONIC CONTROL CENTER ASSY control center sub-assy P/N 20-1842T92, Includes: Ref. 1 - 24
1шт.
1
NSS
NOT SOLD SEPARAT
ENCLOSURE
1шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
2
NSS
NOT SOLD SEPARAT
MOTHER BOARD ASSY
1шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
60-2102T91
COVER
ASSY, Includes: Ref. 3 - 8
1шт.
3
60-2104T2
PLATE
1шт.
4
60-2101T1
PLATE ASSY.
HEAT SINK
1шт.
5
19-1014
SCREW,#10 - 24 x 3/8"
MACHINE SCREW, #10 UNF x 3/8
6шт.
6
60-2100T1
CARD RETAINER, 1-1/4" square 7" long, foam, cut from bulk foam
1шт.
7
60-3112T1
GASKET
GASKET
2шт.
8
60-3161T1
GASKET
GASKET
2шт.
9
2-5026T2
CONNECTOR PLATE
1шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
10
160045
SCREW,Cross Pan Hd, #10 - 32 x 1/2"
MACHINE SCREW, #10 UNF x 1/2
16шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
11
19-6090
TAPPING SCREW, #8 UNS x 1/2
28шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
12
19-5804
SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"
TAPPING SCREW, #6 UNS x 1/2
6шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
13
159943
SCREW,Cross Pan Hd, #10 - 24 x 5/8"
MACHINE SCREW, #10 UNC x 5/8
2шт.
14
2-5229T1
DECAL
1шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
15
20-2147T1
UNIT
PSC (Card #1)
1шт.
16
20-1998T1
BOARD, PRINTED CIRCU
DDC (Card #6)
1шт.
17
20-1276T3
BOARD, PRINTED CIRCU
VWS (Card #7)
1шт.
18
20-2392T1
BOARD, PRINTED CIRCU
UMCM (Card #8)
1шт.
19
20-1712T1
BOARD, PRINTED CIRCU
TDC (Card #5)
1шт.
20
31-2163
CLOSURE CAP
1шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
21
31-2164
CLOSURE CAP
3шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
22
31-2165
CLOSURE CAP
3шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
23
60-3162T1
FOAM
2шт.
Part of Control Center Sub-Assy, P/N 20-1842T92
1шт.
24
25-1000015
PASTE
THERMAL PASTE (Not shown)
1шт.
Выбрано товаров: 37
