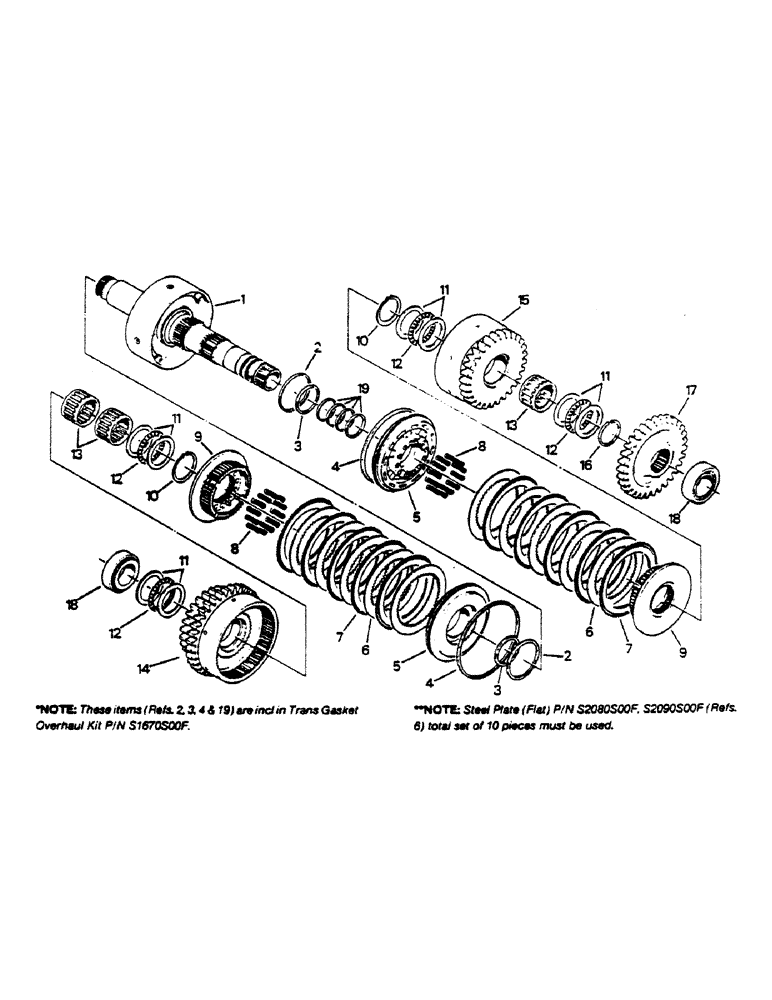

Запчасти Case IH 9180 (04-24) - 7 INCH CLUTCH PACK ASSEMBLY, SECOND (04) - Drive Train

S3000S00F

CLUTCH HOUSING

7" CLUTCH PACK ASSY, Includes: Ref. 1 - 19

1шт.

1

S3900S00F

DRUM SHAFT

ASSY

1шт.

2

S2620S00F

RING

PISTON RING

2шт.

These refs. (Refs. 2, 3, 4 & 19) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

3

S2610S00F

RING

PISTON RING

2шт.

These refs. (Refs. 2, 3, 4 & 19) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S2630S00F

RING

SEALING RING

2шт.

These refs. (Refs. 2, 3, 4 & 19) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S2180S00F

PISTON

CLUTCH PISTON

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

STEEL PLATE (Flat 2.4 MM)

1шт.

Steel Plate (Flat) P/N S2080S00F, S2090S00F (Refs. 6) total set of 10 pieces must be used.

1шт.

S2090S00F

CLUTCH DISC,2.1mm Thk

STEEL PLATE (Flat 2.1 MM)

1шт.

Steel Plate (Flat) P/N S2080S00F, S2090S00F (Refs. 6) total set of 10 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

FACED PLATE

10шт.

8

S2640S00F

SPRING

RETURN SPRING

24шт.

9

S2850S00F

HUB

CLUTCH HUB

2шт.

10

S2100S00F

RING, SNAP

SNAP RING

2шт.

11

S2200S00F

BEARING WASHER

THRUST WASHER

8шт.

12

S2230S00F

BEARING

THRUST BEARING

4шт.

13

S2210S00F

BEARING, ROLLER

NEEDLE BEARING

1шт.

14

S3040S00F

PINION

COUNTER GEAR

1шт.

15

S2280S00F

PINION

DRIVE GEAR

1шт.

16

S2240S00F

RING, SNAP

RETAINING RING

1шт.

17

S3030S00F

PINION

INPUT GEAR

1шт.

18

1-3296

BEARING CUP,3.7402" OD x 0.9252"

2шт.

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

BEARING CONE

2шт.

19

S3070S00F

RING

SEALING RING

4шт.

These refs. (Refs. 2, 3, 4 & 19) are included in Trans Gasket Overhaul Kit P/N S1670S00F.

1шт.
