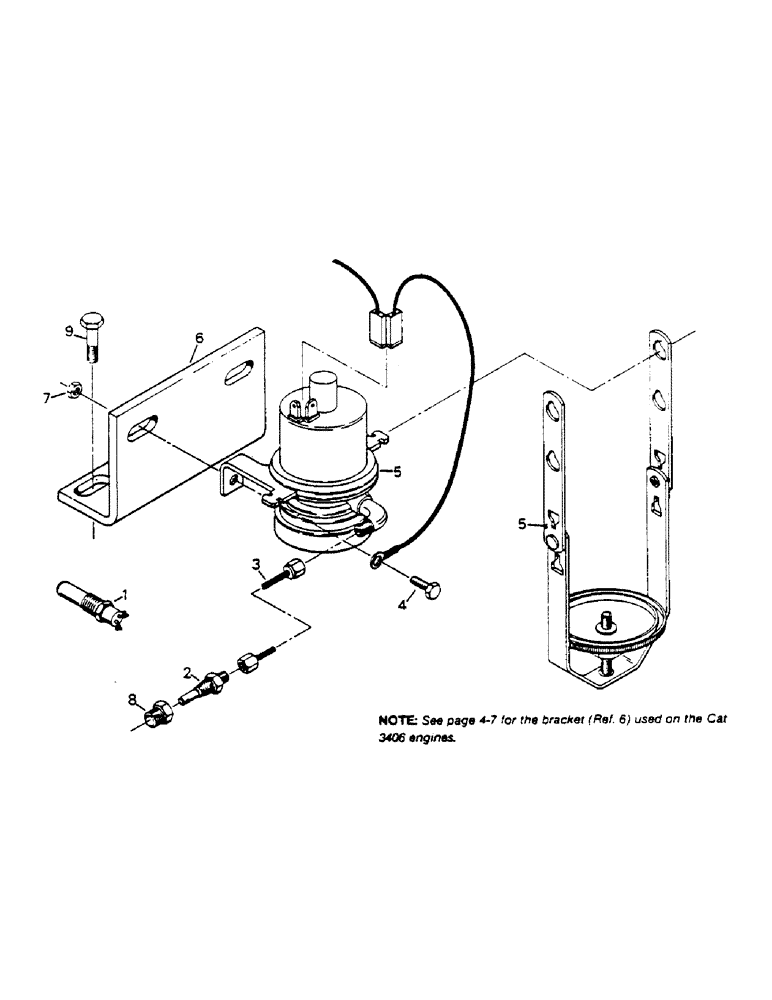

Запчасти Case IH 9180 (04-05) - ETHER START AID (04) - Drive Train

1

20-1301T1

SWITCH

TEMP SWITCH

1шт.

2

6-1603

JET

ATOMIZER

1шт.

3

31-1347

TUBE,0.125" OD, 24" Length

TUBING (Cummins 855 engine)

1шт.

1-6104

TUBE,16" Length

TUBING (Cat 3406 engine)

1шт.

4

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC 3/4 G-5

2шт.

5

6-1600

SOLENOID

ASSY

1шт.

6

90-1675T1

BRACKET

(Cummins 855 engine)

1шт.

BRACKET (Cat 3406 engine)

1шт.

See Fig. 4-7 for the bracket (Ref. 6) used on the Cat 3406 engines.

1шт.

7

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

8

31-607

REDUCER

(Cat 3406 engine only) 1/4 NPT male x 1/8 NPT female

1шт.

9

NAP

CAPSCREW (Existing engine hardware)

2шт.

10

1-1392

FLUID

ETHER START FLUID (Can not shown)

1шт.
