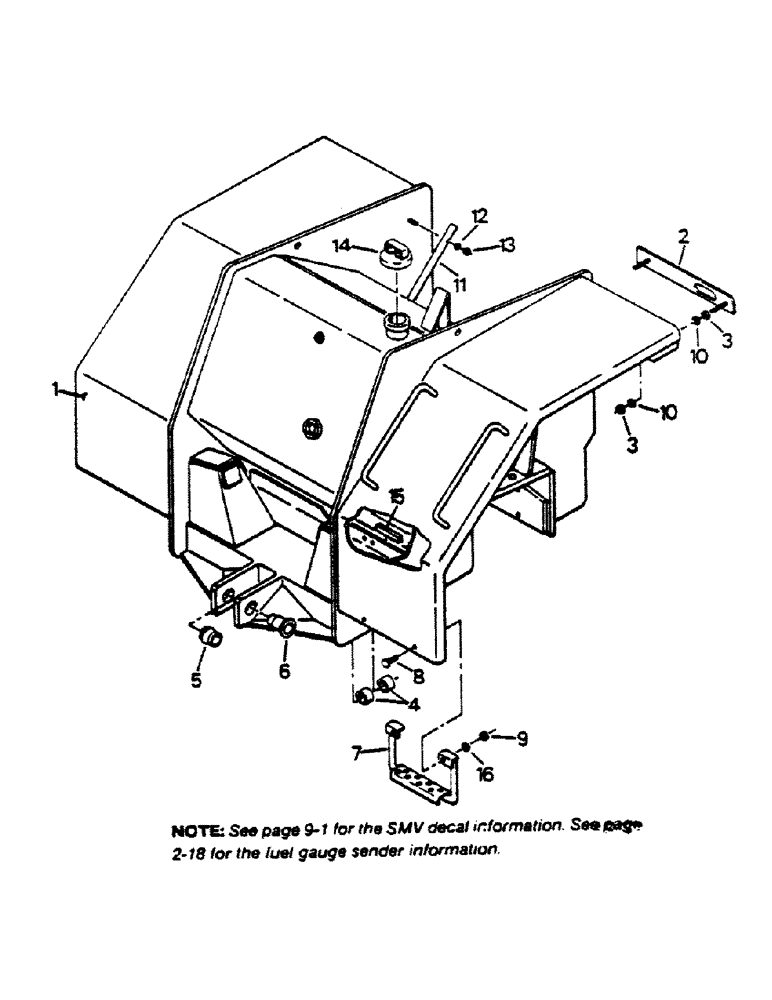

Запчасти Case IH 9180 (06-06) - REAR FRAME (12) - FRAME

1

REAR FRAME (Special order item)

1шт.

2

70-2012T1

LIGHT MOUNT PLATE (Left)

1шт.

REF #2 P/N 70-2012T1 NOT SET UP IN GPN. PER THE HARDCOPY PARTSBOOK, P/N 70-5185T1 IS SHOWN AS THE LIGHT MOUNT PLATE (LH) AND IS SET UP IN GPN. P/N 70-5186T1 IS SHOWN AS THE RH. NO SUBS WERE MADE FROM OLD TO NEW.

1шт.

70-2011T1

PLATE

LIGHT MOUNT PLATE (Right)

1шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

8шт.

4

70-1242T1

RING RACE

BUSHING

2шт.

5

70-1208T1

BUSHING

1шт.

6

70-1210T1

BUSHING,57.23mm ID x 76.2mm OD x 77.72mm L

1шт.

7

70-2618T1

STEP

1шт.

8

19-284

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

CAPSCREW, 3/8 UNC x 7/8 G-5

2шт.

9

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

2шт.

10

19-107

WASHER

3/8

8шт.

11

51-366

PROTECTOR

WIRE GUARD

2шт.

12

19-223

WASHER,1/4"

1/4

4шт.

13

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

4шт.

14

2-3679T1

FILLER CAP

FUEL CAP

1шт.

15

50-2034T1

GROMMET

1шт.

16

70-3015T1

CLIPPED WASHER

2шт.
