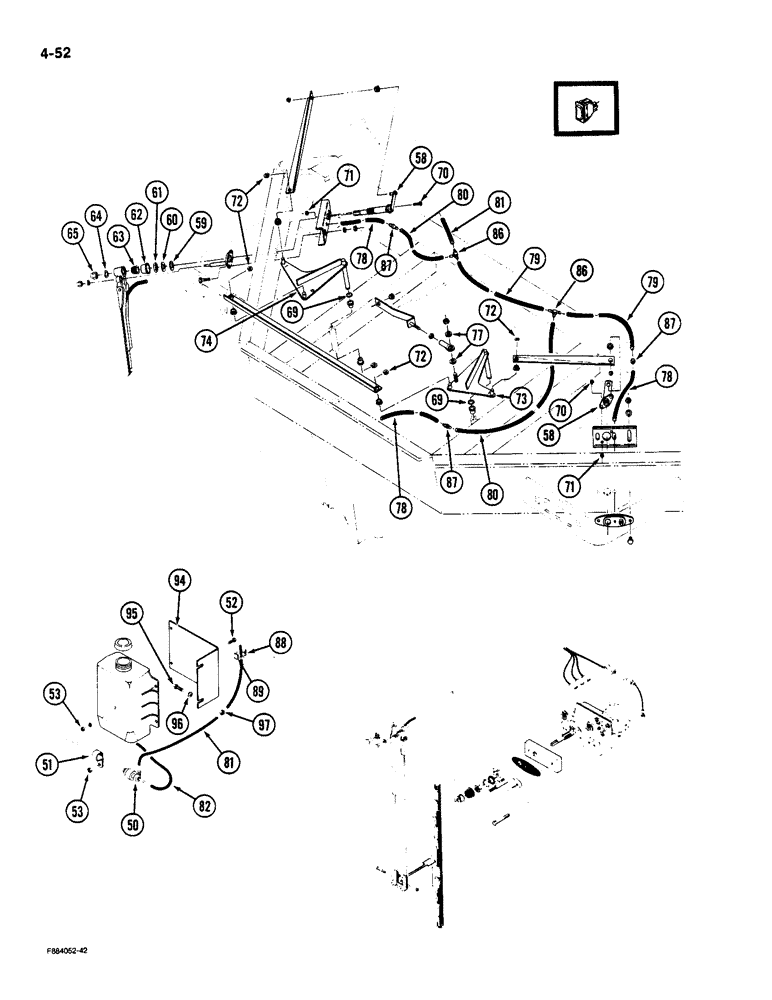

Запчасти Case IH 9180 (4-52) - SIDE AND REAR WIPER WITH WINDOW WASHER, [CONT] (04) - ELECTRICAL SYSTEMS

35-1718T91

KIT

WIPER KIT - window (Continued from previous page), Includes: Ref. 50 - 89 and Ref. 1 - 46 on Fig. 4-50

1шт.

50

60-3183T1

PUMP, WATER

PUMP - washer, window

1шт.

51

31-2361

MOUNTING CLIP

CLAMP - pump, window washer

1шт.

52

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

5шт.

53

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

5шт.

F96719

SHAFT

ASSEMBLY - wiper pivot, Includes: Ref. 58 - 65

2шт.

58

NSS

NOT SOLD SEPARAT

SHAFT - wiper pivot

2шт.

59

1-9416

WASHER

- flat

2шт.

60

1-9417

WASHER

- flat

2шт.

61

1-9418

NUT

- hex, jam

2шт.

62

1-9419

CAP

- seal, shaft

2шт.

63

1-9420

NUT

DRIVER - knurled

2шт.

64

1-9422

WASHER

- lock

2шт.

65

1-9421

NUT

- hex, cap

2шт.

69

19-5370

WAVE WASHER

- wave, 7/16 inch

1шт.

70

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- machine, flanged head, No. 10 NC x 3/4 inch

4шт.

71

19-351

NUT,#10 - 24, GA

NUT - hex lock, No. 10 inch NC

4шт.

72

19-5992

RING, SNAP

RING - snap

4шт.

73

60-5903T1

SUPPORT

BRACKET - pivot, left

1шт.

74

60-5904T1

SUPPORT

BRACKET - pivot, right

1шт.

77

60-5994T1

SPACER

- ball joint

2шт.

78

NSS

NOT SOLD SEPARAT

TUBING - washer, 10 inch (Order 31-2607T1 and, Serial Range: cut-length)

3шт.

79

NSS

NOT SOLD SEPARAT

TUBING - washer, 15 inch (Order 4-1056T1 and, Serial Range: cut-length)

2шт.

80

NSS

NOT SOLD SEPARAT

TUBING - washer, 2 inch (Order 4-1056T1 and, Serial Range: cut-length)

2шт.

81

NSS

NOT SOLD SEPARAT

TUBING - washer, 130 inch (Order 4-1066T1 and, Serial Range: cut-length)

1шт.

82

NSS

NOT SOLD SEPARAT

TUBING - washer, 10 inch (Order 4-1056T1 and, Serial Range: cut-length)

1шт.

86

31-2363

TEE

- nylon, 3/16 inch

2шт.

87

31-2364

FITTING

CONNECTOR - nylon, 3/16 x 7/64 inch

3шт.

88

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

89

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

94

60-5817T1

SUPPORT

BRACKET - mounting, washer tank

1шт.

95

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

2шт.

96

19-224

WASHER,3/8", SAE

- flat, 3/8 x 1 x 1/16 inch

2шт.

97

425-104

NUT,1/4"-20, Cl 5

- hex, 3/8 inch NC

2шт.
