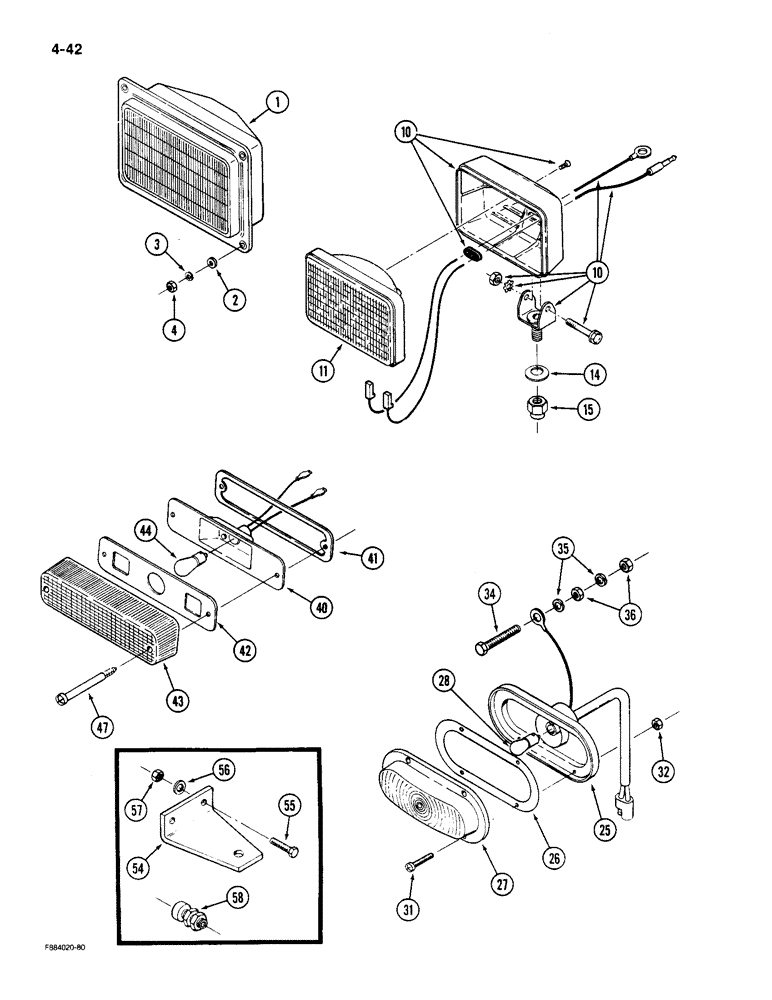

Запчасти Case IH 9180 (4-42) - HEAD LAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

20-2063T1

HEADLIGHT

LAMP ASSEMBLY - head

2шт.

2

19-567

NUT,#10-24

- hex, No. 10 NC

8шт.

3

19-297

LOCK WASHER,#10

Washer, Lock, #10

8шт.

4

19-195

WASHER,#10

- flat, 3/16 x 9/16 x 3/64 inch

8шт.

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood, Includes: Ref. 10 and 11

4шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - flood lamp

1шт.

11

20-1822T1

LAMP BASE

LENS - sealed beam, flood lamp assembly

1шт.

14

22-367

SPRING WASHER

- lock, conical spring, 1/2 inch, flood lamp assembly

4шт.

15

19-653

LOCK NUT

- hex lock, 1/2 inch NC, flood lamp assembly

4шт.

20-1308T91

LAMP, TAIL

LAMP ASSEMBLY - tail, Includes: Ref. 25 - 28

2шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - tail lamp assembly

1шт.

26

20-1661T1

GASKET

- lens, tail lamp assembly

1шт.

27

20-1660T1

LENS

- tail lamp assembly

1шт.

28

22-286

BULB

- light, No. 1157, tail lamp assembly

1шт.

31

153308

SCREW,Phil Pan Hd, #10 - 24 x 0.75", Gr 2

- machine, pan head cross slot, No. 10 NC x 3/8 inch, tail lamp assembly

8шт.

32

9419337

NUT

- hex, keps, No. 10 NC, tail lamp assembly

8шт.

34

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

- machine, hex head keps, 1/4 NC x 1-1/4 inch, tail lamp assembly

2шт.

35

19-115

LOCK WASHER,1/4"

tail lamp assembly 1/4"

4шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, tail lamp assembly

4шт.

22-665

LIGHT, WARNING

LAMP ASSEMBLY - warning, Includes: Ref. 40 - 44

4шт.

40

NSS

NOT SOLD SEPARAT

HOUSING - warning lamp assmebly

1шт.

41

22-664

GASKET

- housing, warning lamp assembly

1шт.

42

22-663

GASKET

- lens, warning lamp assembly

1шт.

43

22-666

LIGHT, WARNING

LENS - warning lamp assembly

1шт.

44

A41264

BULB,#1156, 12V

Light, Warning lamp assembly #1156, 12V

1шт.

47

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

- shouldered, pan head cross slot, warning lamp assembly

8шт.

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood, field option

4шт.

54

60-4336T1

SUPPORT

BRACKET - mounting, cab to flood lamp, field option

2шт.

55

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, field lamp option

4шт.

56

19-105

WASHER,1/4", SAE

- flat, 1/4 inch, field lamp option

4шт.

57

19-1081

LOCK NUT

- hex lock, 1/4 inch NC, field lamp option

4шт.

58

60-2924T1

CONNECTING ROD

GROMMET - wire restraint, field lamp option

2шт.
