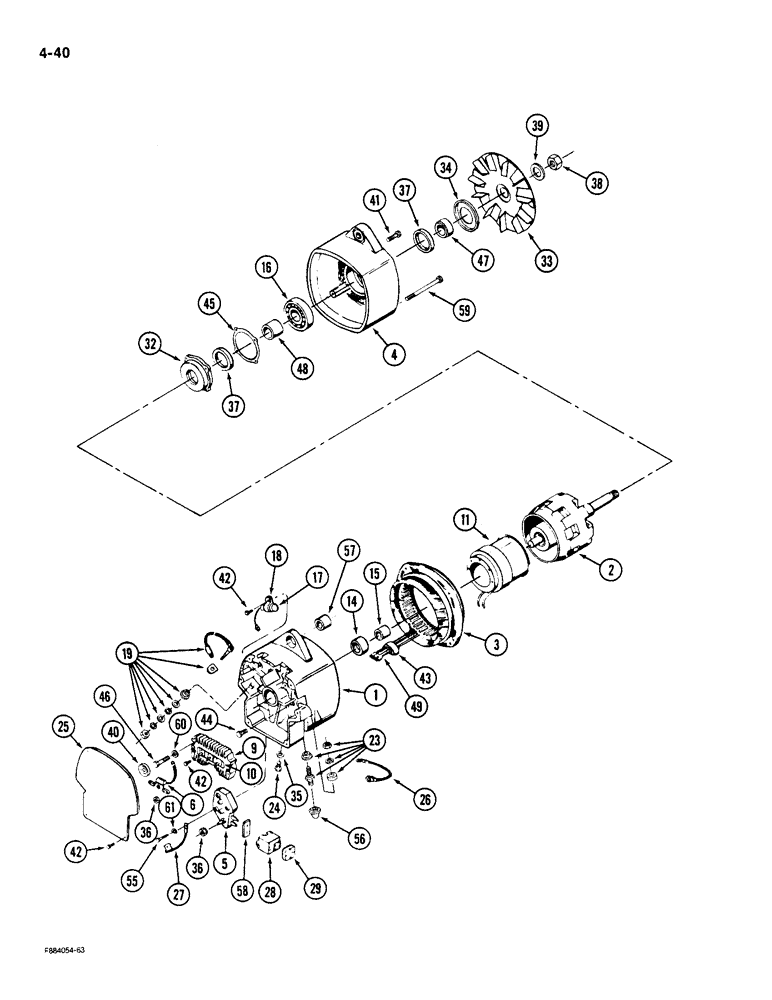

Запчасти Case IH 9180 (4-40) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
22-702
ALTERNATOR
ALTERNATOR ASSEMBLY - engine, Includes: Ref. 1 - 61
1шт.
104258A1R
REMAN-ALTERNATOR
Remanufactured 12 Volt, 90 Amp Alternator
1шт.
104258A1C
CORE-ALTERNATOR
Return Number, 12 Volt, 90 Amp Alternator
1шт.
1
22-1051
HOUSING
HOUSING - alternator
1шт.
2
22-1053
ROTOR
ROTOR ASSEMBLY - alternator
1шт.
3
22-1054
STATOR
SPARE PART STATOR ASSEMBLY - alternator
1шт.
4
22-1061
FRAME
SPARE PART FRAME - front cover
1шт.
5
22-1064
REGULATOR
REGULATOR - voltage
1шт.
6
22-1065
DIODE
DIODE ASSEMBLY - alternator
1шт.
9
22-1093
RECTIFIER
BRIDGE ASSEMBLY - rectifier
1шт.
10
22-1019
INSULATOR
INSULATOR - rectifier bridge
1шт.
11
22-1094
COIL ASSY.
COIL ASSEMBLY - field
1шт.
14
22-1095
BEARING ASSY,0.875" ID x 1.1875" OD x 0.812"
BEARING - outer
1шт.
15
22-1096
RACE
BEARING - inner
1шт.
16
22-1097
BALL
BEARING - roller
1шт.
17
22-1098
CAPACITOR
CAPACITOR - alternator
1шт.
18
22-1011
BRACKET
CLAMP - capacitor
1шт.
19
22-1099
PACKAGE
TERMINAL KIT
1шт.
23
22-1100
PACKAGE
TERMINAL KIT
1шт.
24
22-1101
SCREW
SCREW - flanged head, 1/4 NC x 1/2 inch
1шт.
25
22-1102
PLATE
SPARE PART PLATE - cover
1шт.
26
22-1103
ASSEMBLY
WIRE - lead
1шт.
27
22-1104
ASSEMBLY
WIRE - lead
1шт.
28
22-1106
ROD, CONNECTING
CONNECTOR - body
1шт.
29
22-1105
CAP
CAP - connector body
1шт.
32
22-1107
RETAINER
RETAINER - bearing
1шт.
33
22-1108
FAN
FAN - alternator
1шт.
34
22-1023
SLINGER
SLINGER - bearing
1шт.
35
19-115
LOCK WASHER,1/4"
1/4"
1шт.
36
22-1022
NUT
NUT - hex, keps, No. 8 NC
2шт.
37
22-1021
OIL SEAL
SEAL - bearing
2шт.
38
22-1024
NUT
NUT - hex lock, 5/8 inch NF
1шт.
39
22-1144
WASHER
WASHER - flat, 5/8 x 1-1/4 x 3/32 inch
1шт.
40
22-1020
PLUG
PLUG - bearing hole
1шт.
41
22-1034
SCREW
SCREW - flanged head, No. 10 NC x 1-5/16 inch
4шт.
42
22-1038
SELF-TAP SCREW
SCREW - flanged head, No. 8 NC x 7/16 inch
7шт.
43
22-1018
GROMMET
GROMMET - wire
1шт.
44
22-1039
SCREW
SCREW - flanged head, No. 10 NC x 13/16
1шт.
45
22-1017
GASKET
GASKET - retainer
1шт.
46
22-1049
SCREW
SCREW - hex, keps, No. 8 NC x 1-1/4 inch
2шт.
47
22-1016
COLLAR
SPARE PART COLLAR - outside
1шт.
48
22-1015
COLLAR
SPARE PART COLLAR - inside
1шт.
49
22-1014
CLIP
CLIP - wire
1шт.
55
22-1050
SCREW
SCREW - keps
1шт.
56
22-1013
CAP
CAP - terminal
1шт.
57
22-1012
BUSHING
BUSHING - housing
1шт.
58
22-1010
BOOT
BOOT - regulator
1шт.
59
22-1009
BOLT
BOLT - flanged head, No. 10 NC x 3-5/8 inch
4шт.
60
22-1110
WASHER
WASHER - flat, No. 8
2шт.
61
22-1008
WASHER
WASHER - flat, insulating
1шт.
Выбрано товаров: 50
