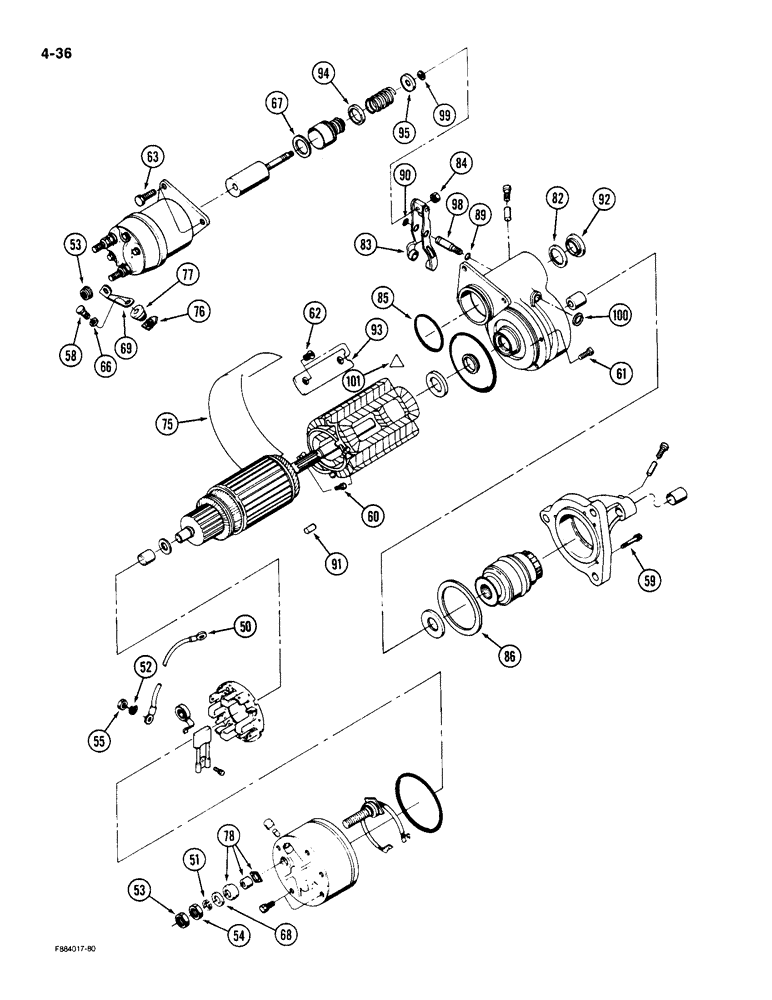

Запчасти Case IH 9180 (4-36) - STARTER ASSEMBLY, [CONT] (04) - ELECTRICAL SYSTEMS

50

A47895

ELECTRICAL WIRE

LEAD - wire

1шт.

51

19-119

LOCK WASHER,1/2"

1/2"

1шт.

52

19-297

LOCK WASHER,#10

Washer, Lock, #10

1шт.

53

A47890

NUT

NUT - hex, keps, 1/2 inch NC

2шт.

54

19-289

JAM NUT,1/2" - 13, Gr 5

- hex, jam, 1/2 inch NC

1шт.

55

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

58

A49751

BOLT,Hex, 1/4" - 20 x 9/16"

- hex

1шт.

59

22-1134

HEX SOC SCREW

BOLT - socket head, 5/16 NC x 7/8 inch, Grade 8

6шт.

60

A47894

SCREW,#8 - 32 x 5/16"

- field lead

2шт.

61

22-1132

SELF-TAP SCREW

- tapping, hex head, 1/4 NF x 1 inch

5шт.

62

22-1135

SCREW

- flat head, cross slot, 3/8 NF x 5/8 inch

8шт.

63

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW - hex, keps

3шт.

66

2-1324

WASHER

- flat

1шт.

67

A41922

WASHER

- flat, 13/16 x 1-3/8 x 1/32 inch

1шт.

68

22-1139

WASHER

- flat, 1/2 x 7/8 x 1/32 inch

1шт.

69

33-1023T1

ELEC CONNECTOR

CONNECTOR - terminal

1шт.

75

33-1024T1

INSULATOR

- field coil

1шт.

76

33-1025T1

INSULATOR

- terminal, inside

1шт.

77

33-1026T1

INSULATOR

- terminal, outside

1шт.

78

33-1027T1

INSULATOR

PACKAGE - terminal

1шт.

82

NSS

NOT SOLD SEPARAT

GASKET - inspection plug

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

83

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY - shift

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

84

22-1129

JAM NUT

- hex lock, 5/16 inch NF

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

85

NSS

NOT SOLD SEPARAT

O-RING - seal, switch

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

86

NSS

NOT SOLD SEPARAT

O-RING - seal, drive housing

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

89

NSS

NOT SOLD SEPARAT

O-RING - seal, shift lever rod

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

90

NSS

NOT SOLD SEPARAT

O-RING - seal, shift lever rod

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

91

33-1028T1

PIN

- spring

1шт.

92

22-1045

PLUG

- hole, inspection

1шт.

93

22-1055

PLATE

POLE SHOE - starter

4шт.

94

22-1057

RETAINER

- spring, plunger

1шт.

95

22-1056

RETAINER

- spring, plunger

1шт.

98

NSS

NOT SOLD SEPARAT

SHAFT - shift lever

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

99

20-2112T1

RING, SNAP

RING - snap, retainer, plunger

1шт.

100

NSS

NOT SOLD SEPARAT

RING - snap, retainer, shaft

1шт.

These parts are included in Shift Lever Package 33-1031T91.

1шт.

101

2-1306

ISOLATOR

INSULATOR - field coil

1шт.
