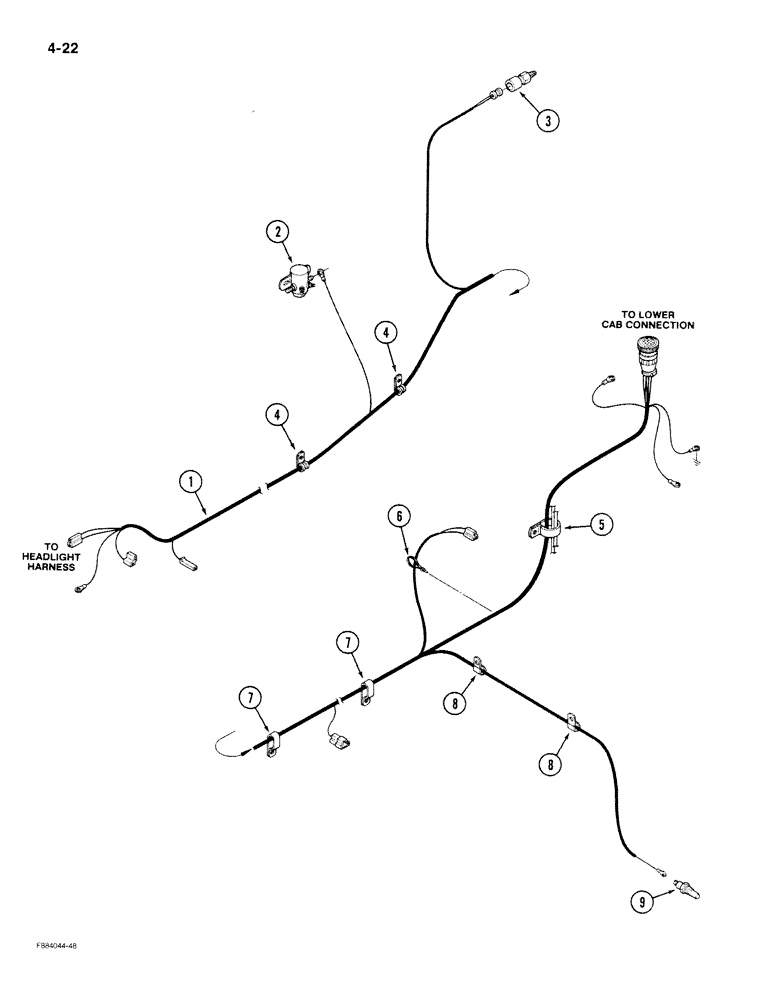

Запчасти Case IH 9180 (4-22) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2451T2

HARNESS

ASSEMBLY - front frame

1шт.

2

REF

INSTRUCTION

SWITCH - magnetic, starter (See Fig. 4-14 and 4-16)

1шт.

3

22-729

SWITCH

- hydraulic, brake light

1шт.

4

31-1775

CLAMP

- harness, retaining

2шт.

5

31-1349

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

7

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- harness, retaining

2шт.

8

22-628

CABLE CLIP

CLIP - harness, retaining

2шт.

9

20-1989T1

SWITCH

- temperature, hydraulic oil

1шт.
