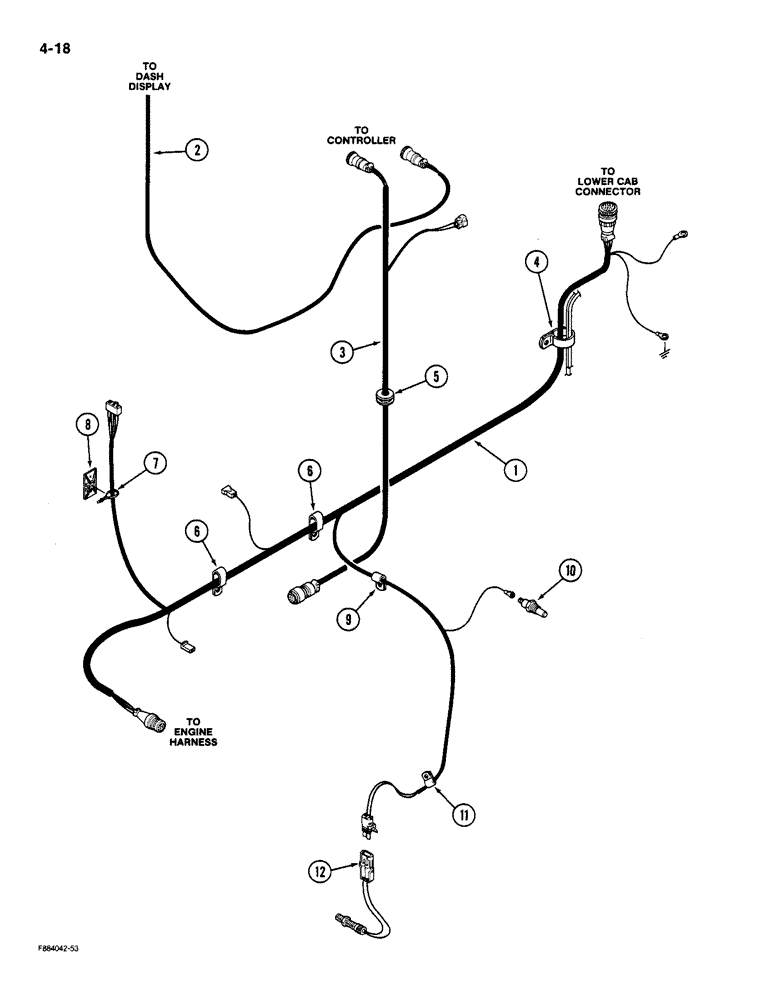

Запчасти Case IH 9180 (4-18) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2443T2

HARNESS

ASSEMBLY - transmission

1шт.

2

20-2292T1

HARNESS

ASSEMBLY - dash, display

1шт.

3

20-2290T1

HARNESS

ASSEMBLY - transmission solenoid

1шт.

4

31-1349

MOUNTING CLIP

CLAMP - harness, retaining

2шт.

5

1-1051

GROMMET

- protective

1шт.

6

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- harness, retaining

2шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

8

22-823

MOUNT

MOUNT - adhesive backed

1шт.

9

155850H1

CLAMP,3/8", 1/4" Bolt

- harness, retaining

1шт.

10

47-4181

IGNITION SWITCH

SWITCH - temperature

1шт.

11

31-1862

CLAMP

- harness, retaining

1шт.

12

20-2129T1

SENSOR

- magnetic, MPH (Prior to P.I.N. JCB0001961 on cabs and prior to P.I.N. JCB0001941 on ROPS)

1шт.

60-6085T1

SENSOR

- magnetic, MPH (P.I.N. JCB0001961 and after on cabs and P.I.N. JCB0001941 and after on ROPS)

1шт.
