(3-22) - FUEL FILTER 855 ENGINE

Запчасти Case IH 9180 (3-22) - FUEL FILTER 855 ENGINE (03) - FUEL SYSTEM

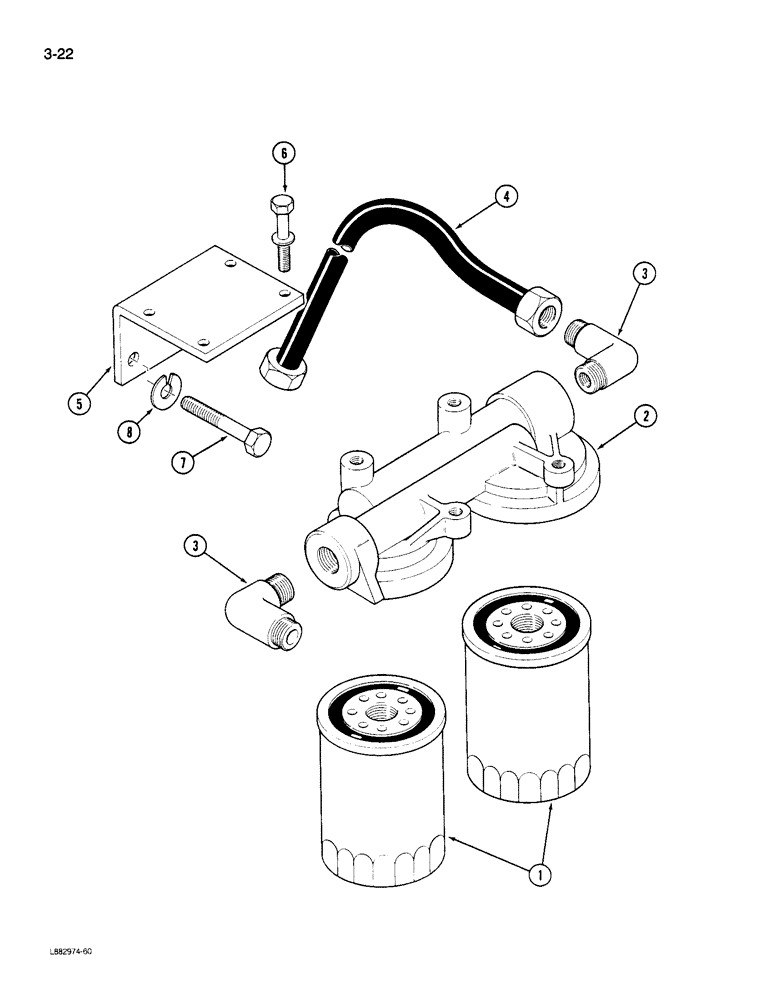

Схема запчастей Case IH 9180 - (3-22) - FUEL FILTER 855 ENGINE (03) - FUEL SYSTEM
3
8
3
6
7
1
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

28-35

FUEL FILTER

2шт.

Order this part from J.I. Case.

1шт.

2

212013

HEAD

- fuel filter

1шт.

3

129859

ELBOW

- male, 90 degree

2шт.

4

A71094

HOSE

fuel

1шт.

Order this part from J.I. Case.

1шт.

5

NLS

NO LONGER SERVICED

BRACKET - filter

1шт.

6

3010595

CAP

BOLT - hex with washer, 3/8 NC x 1 inch

4шт.

7

S151-C

BOLT

BOLT - hex, 9/16 NF x 1 inch

2шт.

8

S609

WASHER, LOCK

WASHER - lock

2шт.

Выбрано товаров: 10
