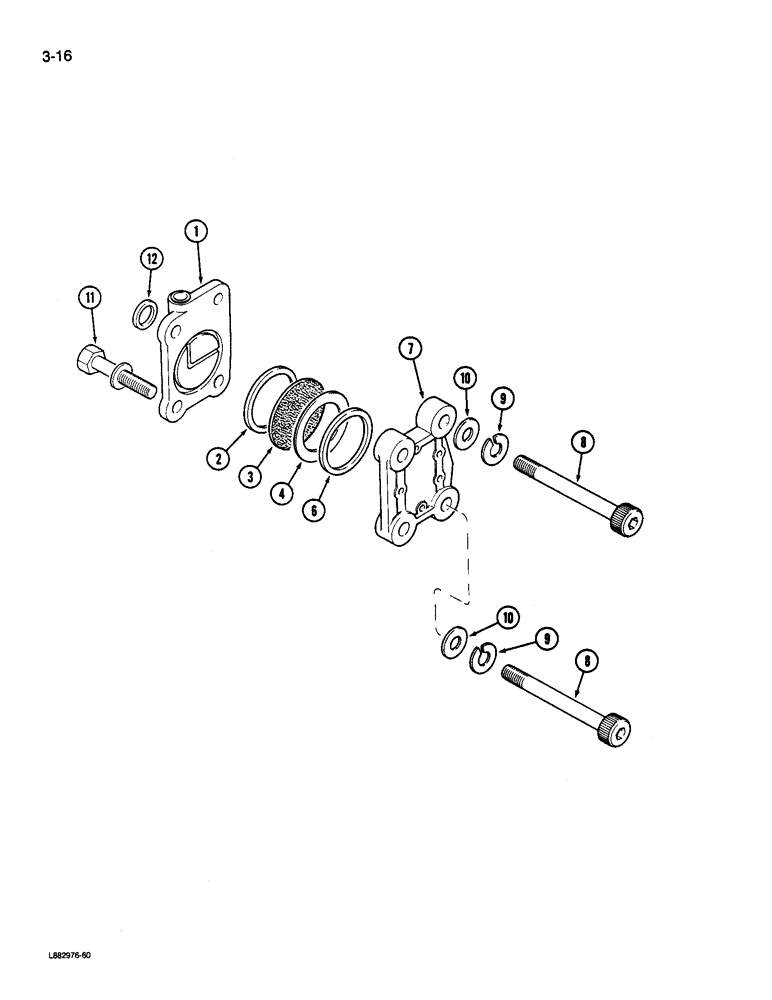

Запчасти Case IH 9180 (3-16) - FUEL PUMP DAMPER 855 ENGINE (03) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

BODY - damper, fuel pump

1шт.

2

139988

RING

SEAL - rectangular ring

1шт.

3

202897

DIAPHRAGM

- damper

1шт.

4

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

WASHER - flat

1шт.

6

100099

RING

SEAL - rectangular ring

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - fuel control

1шт.

8

S174-C

BOLT

- socket head, 1/4 NC x 3-1/2 inch

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

Order this part from J.I. Case.

1шт.

10

70704

WASHER,21-5" Length

- flat, 1/4 inch

2шт.

11

3017051

CAPSCREW

BOLT - hex with washer, 1/4 NC x 1-1/8 inch

2шт.

12

151900

RING

SEAL - rectangular ring

1шт.
