Запчасти Case IH 9180 (3-02) - FUEL LINE SYSTEM 855 ENGINE (03) - FUEL SYSTEM

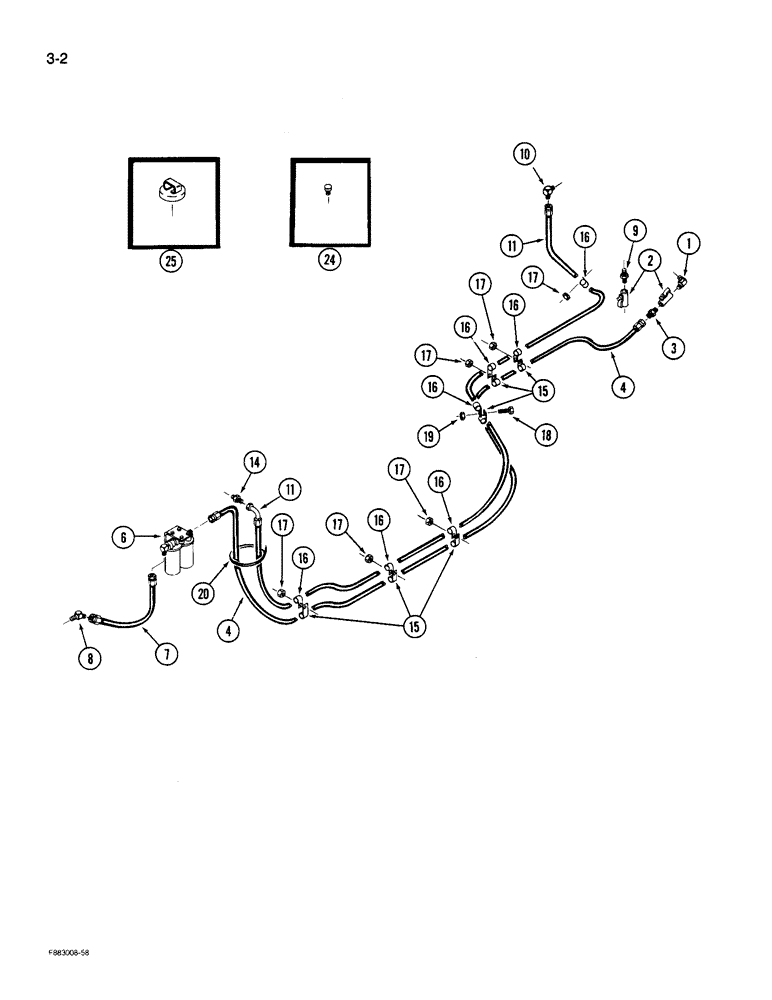

Схема запчастей Case IH 9180 - (3-02) - FUEL LINE SYSTEM 855 ENGINE (03) - FUEL SYSTEM
10
17
17
19
18
16
1
4
11
4
14
16
7
8
6
20
9
24
16
15
17
16
11
15
17
16
17
16
25
2
3
17
16

Артикул

Название

Примечание

Количество

1

31-1585

FITTING

ELBOW - 90 degree, 1/2 NPT x 1/2 inch NPT

1шт.

2

31-1267

SHUT-OFF VALVE

VALVE - shut off

2шт.

3

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR - straight, 1/2 NPT x 7/8 inch thread

1шт.

4

31-2779

HOSE

- fuel supply, 178 inch

1шт.

6

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (See Fig. 3-22)

1шт.

7

REF

INSTRUCTION

HOSE - fuel supply (See Fig. 3-6)

1шт.

8

1-2056

ELBOW

CONNECTOR - 45 degree, 7/8 x 7/8 inch thread

1шт.

9

31-345

FITTING

CONNECTOR - straight, 1/2 NPT x 1/2 inch NPT

1шт.

10

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 90 degree, 1/2 NPT x 7/8 inch thread

1шт.

11

31-2780

HOSE

- fuel return

1шт.

14

31-619

ELBOW

CONNECTOR - straight, 3/4 x 3/4 inch thread

1шт.

15

308576R1

CLAMP

- hose

6шт.

16

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- hose

7шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

2шт.

24

31-1536

BREATHER

VENT - breather, fuel tank

1шт.

25

A162191

CAP

- fuel tank

1шт.

Выбрано товаров: 19
