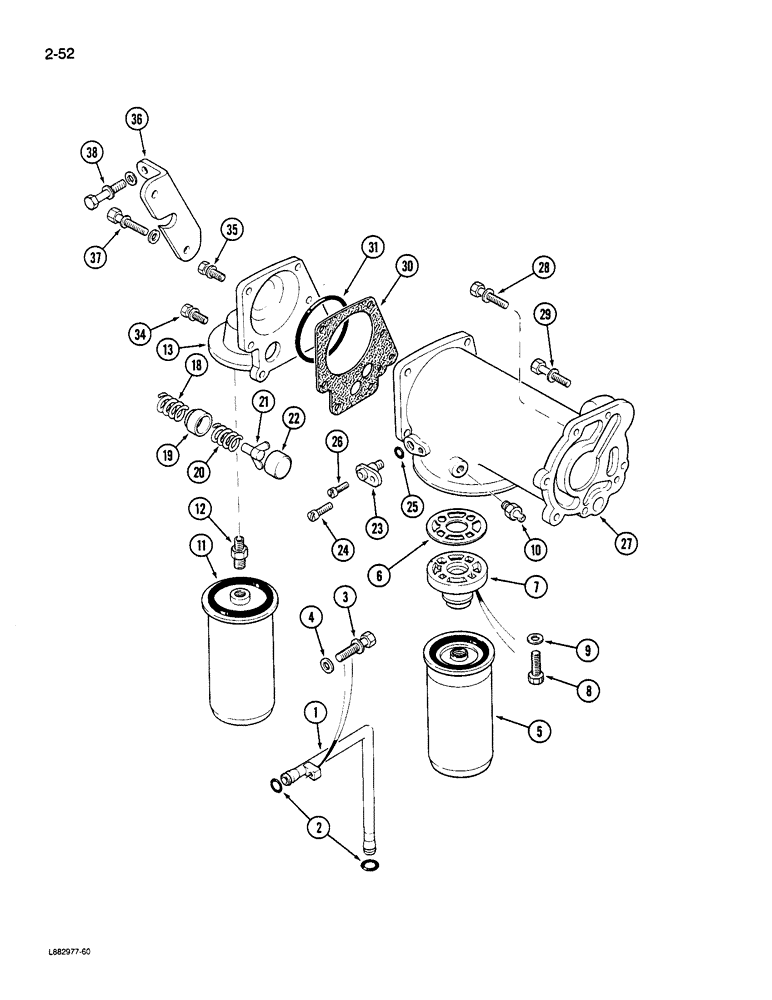

Запчасти Case IH 9180 (2-52) - OIL COOLER AND FILTER 855 ENGINE (02) - ENGINE

1

3024666

TUBE

- water transfer

1шт.

2

212161

RING

SEAL - transfer tube

2шт.

3

3022589

CAP

BOLT - hex with washer, 5/16 NC x 5/8 inch

1шт.

2

212161

RING

SEAL - transfer tube

2шт.

Part of Oil Cooler Seal Kit, P/N 3801199

1шт.

4

S626

WASHER

- flat

1шт.

3053392

COOLER, OIL

COOLER ASSEMBLY - oil, Includes: Ref. 5 - 38 and Ref. 40 - 52 on Fig. 2-54

1шт.

5

1-2187

ENGINE OIL FILTER

ELEMENT - filter, oil full flow

1шт.

Order this part from J.I. Case.

1шт.

6

3052128

GASKET

- filter head

1шт.

Part of Oil Cooler Seal Kit, P/N 3801199

1шт.

7

3052129

HEAD

- oil fIlter

1шт.

Part of Oil Cooler Seal Kit, P/N 3801199

1шт.

8

115482

12 PT SCREW

BOLT - 12 point head, 5/16 NC x 1-1/4 inch

4шт.

9

70734

WASHER

- flat, 5/16 inch

4шт.

10

3042619

NIPPLE, LUBE

NIPPLE - coupling

1шт.

11

90-1158T1

ENGINE OIL FILTER

ELEMENT - filter, oil bypass

1шт.

Order this part from J.I. Case.

1шт.

3037242

HEAD

ASSEMBLY - filter, Includes: Ref. 12 and 13

1шт.

12

3037219

ADAPTER

INSERT - filter head

1шт.

13

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

18

3039296

SPRING

- compression

1шт.

19

3030805

PISTON

- pressure sensing

1шт.

20

3030803

SPRING

- compression

1шт.

21

3030806

PLUNGER

- bypass valve

1шт.

22

3030804

PISTON

- bypass valve

1шт.

23

3035028

UNIT

SENSING UNIT ASSEMBLY, Includes: Ref. 24 and 25

1шт.

24

101996

BOLT

BOLT - pan head

1шт.

25

3030808

RING

SEAL - sensing unit

1шт.

Part of Oil Cooler Seal Kit, P/N 3801199

1шт.

26

3031005

CAP

SCREW - pan head, 1/4 NC x 3/4 inch

1шт.

27

3052210

HOUSING

- oil cooler

1шт.

28

3044413

CAP

BOLT - hex with washer, 3/8 NC x 2 inch

6шт.

29

NLS

NO LONGER SERVICED

BOLT - hex with washer, 3/8 NC x 1-1/4 inch

1шт.

30

3052513

GASKET

- cooler cover

1шт.

Part of Oil Cooler Seal Kit, P/N 3801199

1шт.

31

3018695

RING

SEAL - filter head

1шт.

Part of Oil Cooler Seal Kit, P/N 3801199

1шт.

34

NLS

NO LONGER SERVICED

BOLT - hex with washer, 3/8 NC x 2-1/4 inch

2шт.

35

3035624

SPARE PART

BOLT - hex with washer, 3/8 NC x 1-1/2 inch

3шт.

36

3018697

BRACE

- oil cooler

1шт.

37

3044901

CAP

BOLT - hex with washer, 1/4 NC x 7/8 inch

2шт.

38

S602

WASHER

- flat, 13/32 inch

2шт.
