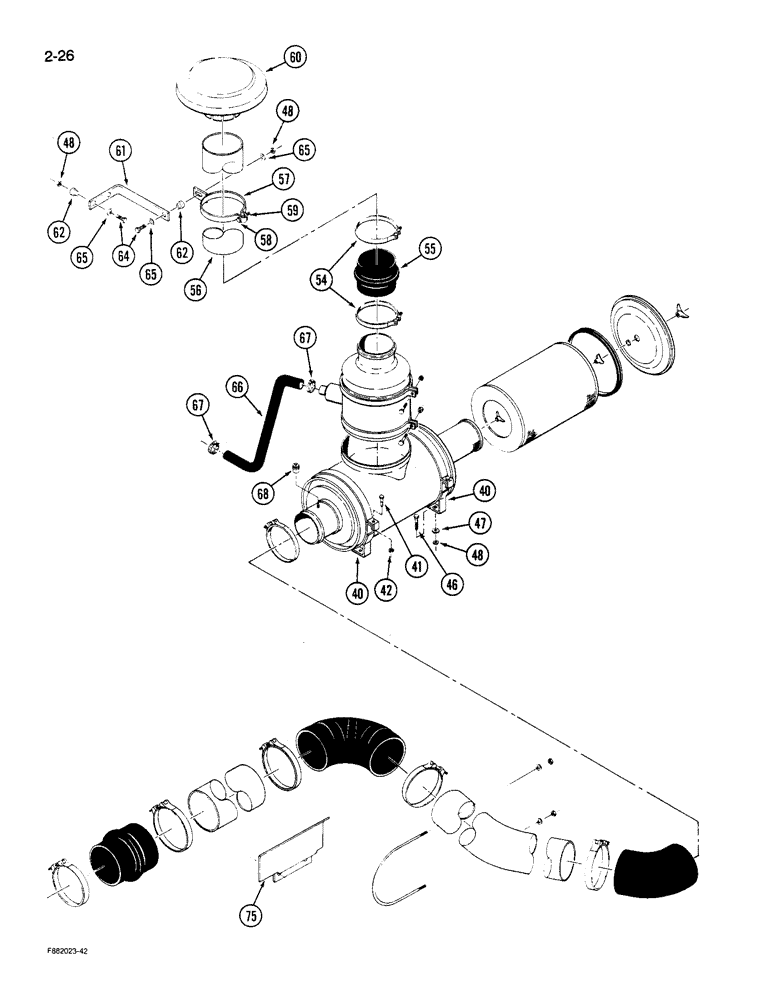

Запчасти Case IH 9180 (2-26) - AIR INDUCTION SYSTEM, [CONT] (02) - ENGINE

40

90-3871T1

CLIP

BAND - mounting, air cleaner, Includes: Ref. 41 and 42

2шт.

41

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

42

19-508

LOCK NUT

- hex, lock, 5/16 inch NC

2шт.

46

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

47

19-117

LOCK WASHER,3/8"

3/8"

4шт.

49

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

7шт.

54

31-2271

HOSE CLAMP,6.25/7.625 HD Worm, W/liner

CLAMP - hose, 6-3/4 to 7-5/8 inch

2шт.

55

9-73

HOSE

- coupling, 7 inch

1шт.

56

90-3869T1

TUBE,7 mm OD x 44 mm L

- air inlet, 7 x 44 inch

1шт.

57

60-2764T1

MOUNTING CLIP

CLAMP - support, Includes: Ref. 58 and 59

1шт.

58

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

59

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

60

9-120

CAP ASSY.

HOOD - air inlet

1шт.

61

90-6870T1

SUPPORT

MOUNT - support, air inlet tube

1шт.

62

196504C1

BUSHING

MOUNT - isolator, rubber

2шт.

64

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

3шт.

65

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

66

90-3979T1

HOSE,2.00" ID

Aspirator, Air Cleaner to Exhaust 2.00" ID

1шт.

67

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

2шт.

68

A59569

INDICATOR

- service, air cleaner filter

1шт.

75

90-3716T1

SHIELD

- heat, 855 engine only

1шт.
