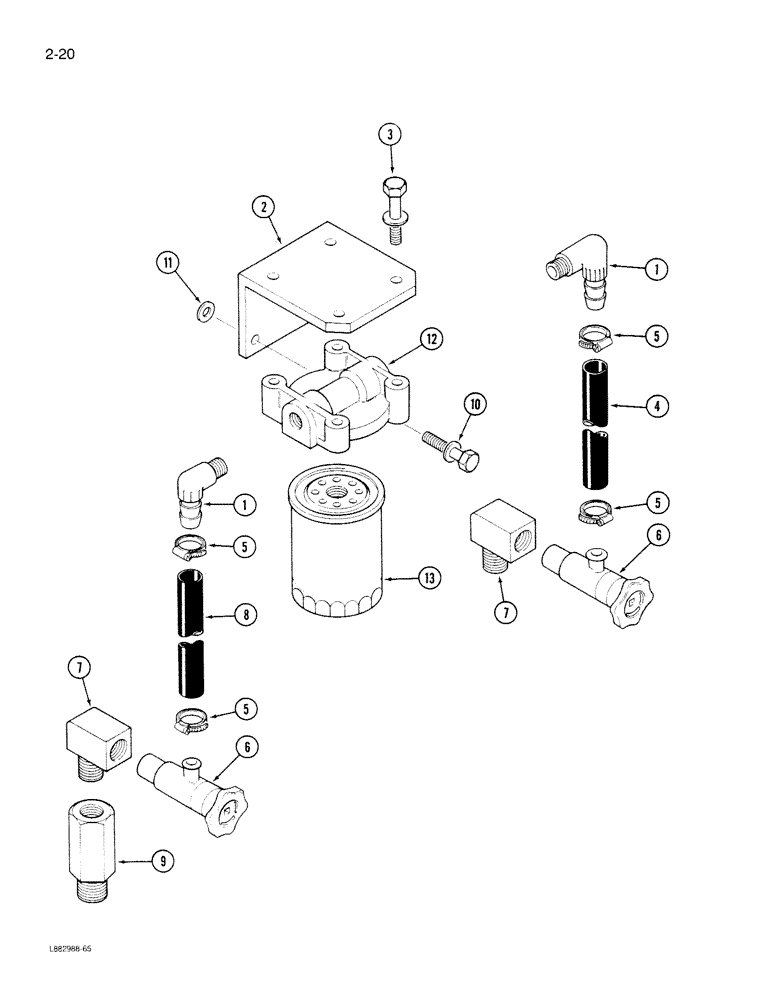

Запчасти Case IH 9180 (2-20) - WATER FILTER 855 ENGINE (02) - ENGINE

1

A77548

ELBOW

coupling

2шт.

Order this part from J.I. Case.

1шт.

2

3060476

BRACKET

- water filter

1шт.

3

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

hex 3/8 NC x 1-1/4 inch

4шт.

Order this part from J.I. Case.

1шт.

4

3062304

HOSE

- plain

1шт.

5

NLS

NO LONGER SERVICED

CLAMP - hose

4шт.

6

A154051

COCK, DRAIN

VALVE shutoff

2шт.

Order this part from J.I. Case.

1шт.

7

A71099

ELBOW

street

2шт.

Order this part from J.I. Case.

1шт.

8

3062302

HOSE

- plain

1шт.

9

180221

ADAPTER

- pipe

1шт.

10

3043649

CAP

BOLT - hex, 7/16 NC x 4-1/4 inch

2шт.

11

109594

WASHER

- flat

4шт.

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - water, Includes: Ref. 12 and 13

1шт.

12

A152821

HEAD

water filter

1шт.

Order this part from J.I. Case.

1шт.

13

A77544

FILTER

coolant conditioner, service

1шт.

Order this part from J.I. Case.

1шт.

13

A77659

FILTER

coolant conditioner, precharge

1шт.

Order this part from J.I. Case.

1шт.
