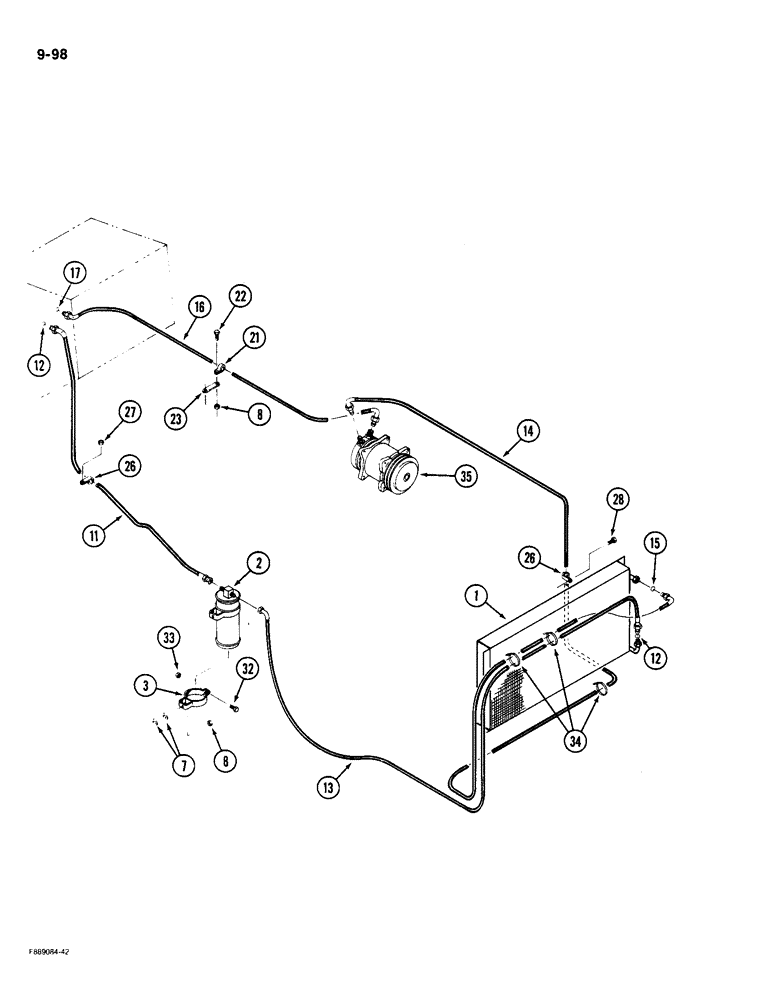

Запчасти Case IH 9180 (9-098) - AIR CONDITIONING CONDENSER, RECIEVER-DRIER AND PLUMBING 855 ENGINE (09) - CHASSIS/ATTACHMENTS

1

60-4335T2

CONDENSER

ASSEMBLY - air conditioning

1шт.

2

60-5818T1

SUPPORT

RECEIVER-DRIER - freon

1шт.

3

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

7

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

5шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, lock, 5/16 inch NC

3шт.

11

31-2751

HOSE,7.94mm ID x 1981.2mm L

ASSEMBLY - receiver-drier to thermal expansion valve

1шт.

12

31-1807

O-RING

O-RING - 5/16 x 7/16 inch

2шт.

13

31-2575

HOSE,7.94mm ID x 2641.6mm L

ASSEMBLY -, Serial Range: condenser-receiver-drier

1шт.

14

31-1892

HOSE,10.41mm ID x 3352.8mm L

ASSEMBLY - discharge, Serial Range: compressor-condenser

1шт.

15

31-1808

O-RING

O-RING - 7/16 x 9/16 inch

1шт.

16

31-2746

HOSE,15.88mm ID x 1778mm L

ASSEMBLY - suction

1шт.

17

31-1809

O-RING

- 9/16 x 11/16 inch

1шт.

21

308576R1

CLAMP

- hose

1шт.

22

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

23

60-5816T1

SUPPORT

BRACKET - mounting, clamp

1шт.

26

31-1776

MOUNTING CLIP

CLAMP - hose

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 7/8 inch

1шт.

32

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

33

280129

NUT,1/4"-20

BOLT - hex, 1/4 inch NC

2шт.

34

1-7818

CABLE

STRAP - nylon

3шт.

35

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Fig. 9-106)

1шт.
